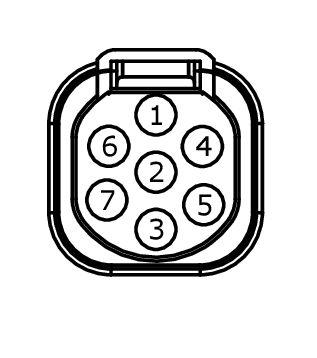

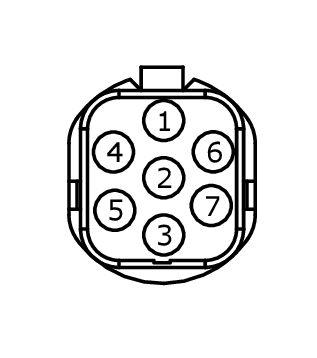

Connector End View (C260) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C260
Description
Inline
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 353900-4
FEMALE
Harness 353900-4
| Pin | Circuit | Gauge | Qualifier |
| 1 | * (VT) | * | |
| 2 | * (GN) | * | |
| 3 | * (BK) | * | |
| 4 | * (GY) | * | |
| 5 | * (BN) | * | |
| 6 | * (VT) | * |
| Pin | Circuit | Gauge | Qualifier |
| 1 | * (RD) | * | |
| 2 | * (BK) | * | |
| 3 | * (OG) | * | |
| 4 | * (LB) | * | |
| 5 | * (YE) | * | |
| 6 | * (GY) | * |
