Connector End View (C257) - CLUTCH PEDAL POSITION (CPP) SWITCH

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C257

Description

CLUTCH PEDAL POSITION (CPP) SWITCH

Color

Harness

14K733

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE903 (BU-OG)	22	SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT)
2	GD135 (BK-GY)	22	GROUND - PILLAR A LEFT # 3RD STUD

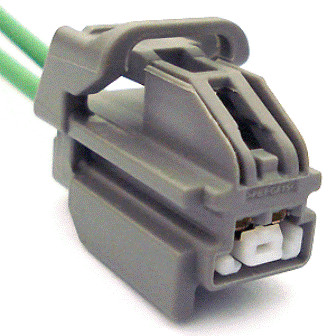

Available Pigtail Kits

Pigtail Kit Part Number

WPT-965

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AEB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Element - Heated Seat

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Heated Seat

Motor - Adjustable Pedal

Motor - Decklid / Liftgate

Sensor - Air Charge Temperature

Sensor - EATC In Car Temperature

Speaker - Subwoofer

Switch - Adjustable Pedal

Switch - Brake Deactivation

Switch - Brake Pressure

Switch - Clutch Pedal Position

Switch - Stop Lamp

Switch - Third Row Power Folding Seat
