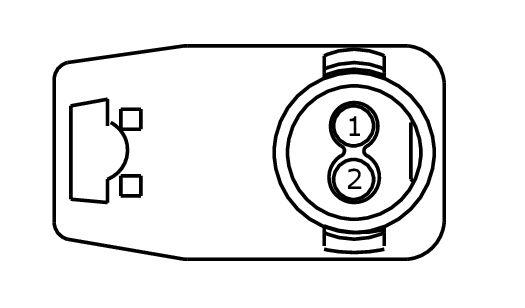

Connector End View (C256B) - PASSENGER AIR BAG MODULE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C256B
Description
PASSENGER AIR BAG MODULE
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RR104 (WH-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 RETURN | |
| 2 | CR104 (YE-GY) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1467 |

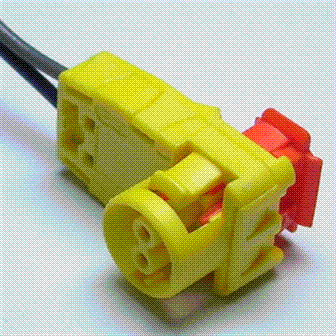

Service Part Number: BU2Z-14S411-BKB Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Squib - Airbag (Driver) Squib - Airbag (Passenger) |
| Pigtail Kit Part Number WPT-1227 |
Service Part Number: BU2Z-14S411-BKA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger) |
