Connector End View (C250) - IGNITION SWITCH
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

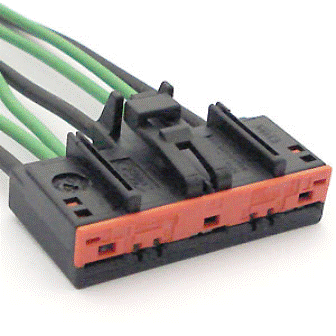

Connector: C250
Description
IGNITION SWITCH
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC32 (BN-YE) | 18 | SWITCH - IGNITION # RUN | |
| 2 | * | * | Not Used | |
| 3 | CDC41 (WH-BN) | 22 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | |
| 4 | SBP24 (VT-RD) | 18 | FUSE OR CIRCUIT BREAKER | |
| 5 | CDC30 (BU-GY) | 22 | SWITCH - IGNITION # KEY IN | |
| 6 | CDC33 (VT-GN) | 22 | SWITCH - IGNITION # RUN; ACCESSORY | |
| 7 | CDC35 (BU-WH) | 18 | SWITCH - IGNITION # START |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-957 |
Service Part Number: 3U2Z-14S411-FMAB Gauge: 12 14 Pin material: Tin & Silver Cavities: 7 Vehicle Uses Switch - Ignition |
