Connector End View (C238) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C238
Description
Inline
Color
NA
Base Part #
Service Pigtail
Not Available

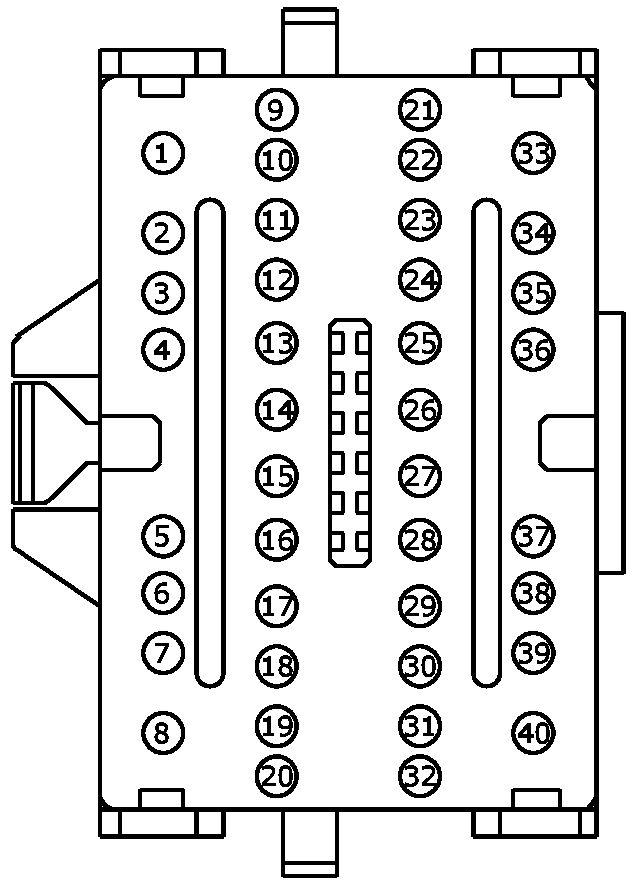

MALE
Harness 14K733

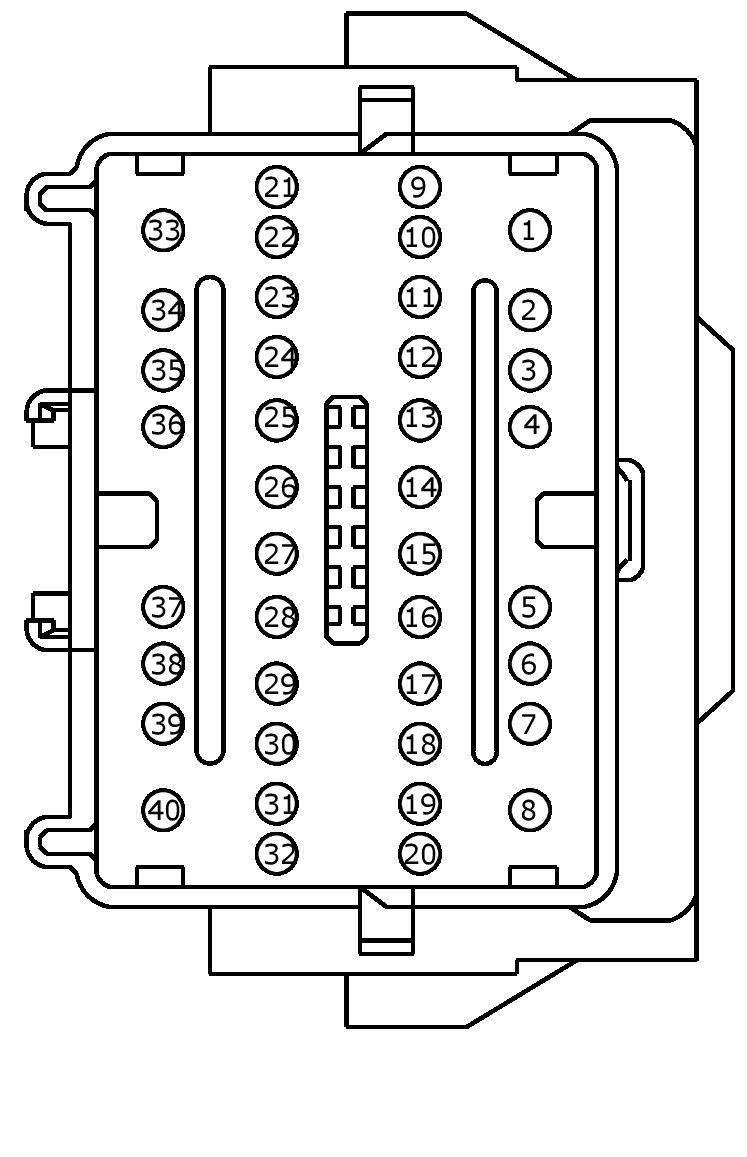

FEMALE
Harness 14014
| Pin | Circuit | Gauge | Qualifier |
| 1 | LE230 (BN-BU) | 20 | |
| 2 | CRD06 (BN-YE) | 12 | |
| 3 | CPW35 (GN) | 12 | |
| 4 | CBB00 (BN-YE) | 12 | |
| 5 | VE518 (BN-WH) | 20 | |
| 6 | CE420 (GY-VT) | 20 | |
| 7 | CE113 (WH-BN) | 20 | |
| 8 | VE922 (VT-GN) | 20 | |
| 9 | VCA04 (BU-OG) | 20 | 14K733 |
| 10 | RCA18 (BN-GN) | 20 | 14K733 |
| 11 | VCA06 (WH-OG) | 20 | 14K733 |
| 12 | RCA20 (BN) | 20 | 14K733 |
| 13 | VCA24 (GN-OG) | 20 | |
| 14 | VCA23 (BU-WH) | 20 | |
| 15 | VDB05 (WH) | 20 | 14K733 |
| 16 | VDB04 (WH-BU) | 20 | 14K733 |
| 17 | VDB07 (VT-OG) | 20 | 14K733 |
| 18 | VDB06 (GY-OG) | 20 | 14K733 |
| 19 | VE208 (WH) | 18 | |
| 20 | CBB45 (YE) | 18 | 14K733 |
| 21 | CPM00 (BN-GN) | 20 | |
| 22 | CRD02 (BN-BU) | 20 | 14K733 |
| 23 | CPM00 (BN-GN) | 20 | 14K733 |
| 24 | CBB39 (VT-WH) | 18 | 14K733 |
| 25 | VMP12 (BU-GY) | 20 | 14K733 |
| 26 | VMP11 (BU-GN) | 20 | 14K733 |
| 27 | VMP10 (WH-BU) | 20 | 14K733 |
| 28 | VMP20 (GY-OG) | 20 | 14K733 |
| 29 | VMP21 (WH-BN) | 20 | 14K733 |
| 30 | LMP06 (VT-GY) | 20 | 14K733 |
| 31 | RMP06 (YE-OG) | 20 | 14K733 |
| 32 | VMP13 (BU-OG) | 20 | 14K733 |
| 33 | RE230 (WH-VT) | 20 | |
| 34 | CRW02 (GY-BU) | 18 | 14K733 |
| 34 | CRW02 (GY-BU) | 20 | 14K733 - GTDI |
| 35 | CRW05 (BU) | 16 | |
| 36 | CBB45 (YE) | 16 | |
| 37 | VH407 (YE-GN) | 22 | |
| 38 | RH107 (BK-YE) | 20 | |
| 39 | CBB22 (GN-OG) | 20 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | LE230 (BN-BU) | 20 | |
| 2 | CRD06 (BN-YE) | 12 | |
| 3 | CPW35 (GN) | 12 | |
| 4 | CBB00 (BN-YE) | 12 | |
| 5 | VE518 (BN-WH) | 20 | |
| 6 | CE420 (GY-VT) | 20 | |
| 7 | CE113 (WH-BN) | 20 | |
| 8 | VE922 (VT-GN) | 20 | |
| 9 | VCA04 (BU-OG) | 22 | 14014 |
| 10 | RCA18 (BN-GN) | 22 | 14014 |
| 11 | VCA06 (WH-OG) | 22 | 14014 |
| 12 | RCA20 (BN) | 22 | 14014 |
| 13 | VCA24 (GN-OG) | 20 | |
| 14 | VCA23 (BU-WH) | 20 | |
| 15 | VDB05 (WH) | 22 | 14014 |
| 16 | VDB04 (WH-BU) | 22 | 14014 |
| 17 | VDB07 (VT-OG) | 22 | 14014 |
| 18 | VDB06 (GY-OG) | 22 | 14014 |
| 19 | VE208 (WH) | 18 | |
| 20 | CHS25 (YE) | 18 | 14014 |
| 21 | CPM00 (BN-GN) | 20 | |
| 22 | CRD02 (BN-BU) | 22 | 14014 |
| 23 | CPM00 (BN-GN) | 18 | 14014 |
| 24 | CHS59 (WH-OG) | 18 | 14014 |
| 25 | VMP12 (BU-GY) | 22 | 14014 |
| 26 | VMP11 (BU-GN) | 22 | 14014 |
| 27 | VMP10 (WH-BU) | 22 | 14014 |
| 28 | VMP20 (GY-OG) | 22 | 14014 |
| 29 | VMP21 (WH-BN) | 22 | 14014 |
| 30 | LMP06 (VT-GY) | 22 | 14014 |
| 31 | RMP06 (YE-OG) | 22 | 14014 |
| 32 | VMP13 (BU-OG) | 22 | 14014 |
| 33 | RE230 (WH-VT) | 20 | |
| 34 | CRW02 (GY-BU) | 20 | |
| 35 | CRW05 (BU) | 20 | |
| 36 | CBB45 (YE) | 20 | |
| 37 | VH407 (YE-GN) | 22 | |
| 38 | RH107 (BK-YE) | 20 | |
| 39 | CBB22 (GN-OG) | 20 |
