Connector End View (C228A) - HVAC CONTROL MODULE, DATC
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

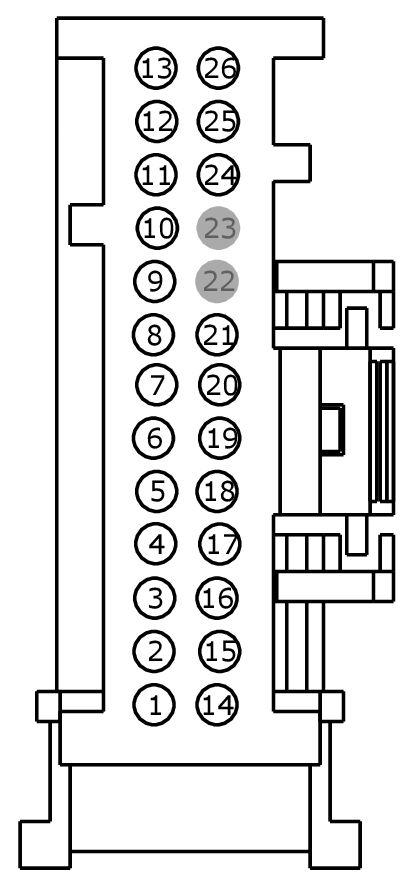

Connector: C228A
Description
HVAC CONTROL MODULE, DATC
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CH201 (BN-GN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON | |
| 2 | CH212 (BU-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS) | |
| 3 | CH213 (BN-GN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS) | |
| 4 | CH214 (GY-VT) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 3 | |
| 5 | CH215 (VT) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 4 | |
| 6 | CH238 (YE-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) | |
| 7 | CH239 (BU-WH) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) | |
| 8 | CH240 (GN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 3 | |
| 9 | CH241 (GY-BN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 4 | |
| 10 | CH202 (BU-GN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) | |
| 11 | CH203 (GN-BN) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) | |
| 12 | CH204 (GY-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 3 | |
| 13 | CH205 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 4 | |
| 14 | CH207 (BU-GY) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) | |
| 15 | CH208 (GN-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) | |
| 16 | CH209 (BN-YE) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 3 | |
| 17 | CH210 (VT-WH) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 4 | |
| 18 | CH228 (YE-GY) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1 / CLOSE (IF PLUS) | |
| 19 | CH229 (WH-BU) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2 / OPEN (IF PLUS) | |
| 20 | CH230 (GN-BU) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 3 | |
| 21 | CH231 (GY-YE) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 4 | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | VH412 (YE-GY) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COMMON | |
| 25 | VH410 (GY-BU) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON | |
| 26 | RH105 (GN) | 22 | CTRL MOD. - CLIMATE # SUNLOAD SENSOR |
