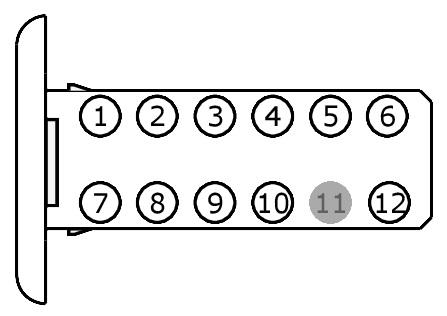

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C220
Description
INSTRUMENT PANEL CLUSTER (IPC)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 2 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 3 | SBP08 (VT-RD) | 22 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 4 | VDB14 (VT-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW | |
| 5 | VDB13 (BU-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH | |
| 6 | RMC27 (WH-BN) | 22 | CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION / MESSAGE CENTER SELECT | |
| 7 | VMC29 (YE) | 22 | SWITCH - INFORMATION / MESSAGE CENTER SELECT | |
| 8 | CMC29 (GN-VT) | 22 | SWITCH - INFORMATION / MESSAGE CENTER SELECT | |
| 9 | CDC41 (WH-BN) | 22 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | |
| 10 | GD138 (BK) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT | |
| 11 | * | * | Not Used | |
| 12 | VE213 (BU-WH) | 20 | CTRL MOD. - CRANK DETECT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1278 |
Service Part Number: CU2Z-14S411-ABA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses Message Center Module - Driver Information Module - Front Interface |
