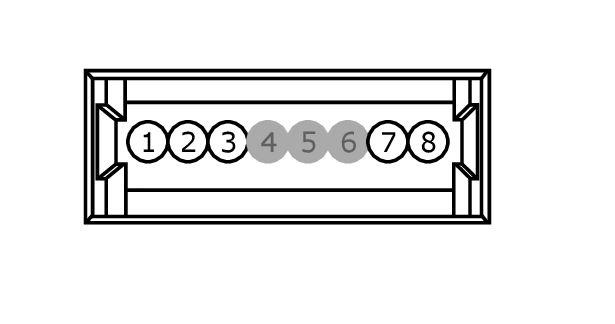

Connector End View (C218C) - CLOCKSPRING
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C218C
Description
CLOCKSPRING
Color
Harness
3F818
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (*) | * | TRIP SIGNAL | |
| 2 | * (*) | * | DISPLAY SIGNAL | |
| 3 | * (*) | * | DISPLAY/TRIP GROUND | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * (*) | * | SWITCH - IP/SWITCH ILLUMINATION | |
| 8 | * (*) | * | CRUISE SIGNAL 1 |
