Connector End View (C218B) - CLOCKSPRING
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C218B
Description
CLOCKSPRING
Color
Harness
14A664
Base Part #
part# N/A
Service Pigtail
See Below

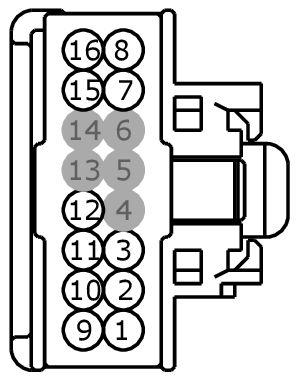

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (BN) | * | TRIP SIGNAL | |
| 2 | * (VT) | * | DISPLAY/TRIP GROUND | |
| 3 | * (GY) | * | CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION / MESSAGE CENTER SELECT | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * (BK) | * | SWITCH - IP/SWITCH ILLUMINATION | |
| 8 | * (GY) | * | CRUISE SIGNAL 1 | |
| 9 | * (VT) | * | CTRL MOD. - STEERING WHEEL # HORN | |
| 10 | * (GN) | * | GROUND - PILLAR A LEFT | |
| 11 | * (GY) | * | SWITCH - REDUNDANT AUDIO | |
| 12 | * (VT) | * | CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * (VT) | * | CRUISE GROUND | |
| 16 | * (BN) | * | CRUISE SIGNAL 2 |
| Available Pigtail Kits | |

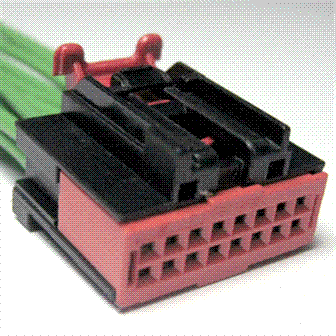

| Pigtail Kit Part Number WPT-1152 |
Service Part Number: 3U2Z-14S411-AJD Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction |
