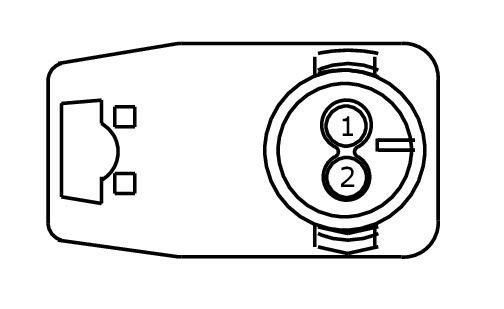

Connector End View (C216A) - DRIVER AIR BAG MODULE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C216A
Description
DRIVER AIR BAG MODULE
Color
Harness
14A664
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (VT) | * | CTRL MOD. - AIR BAG DRIVER 1 SIGNAL | |
| 2 | * (GN) | * | CTRL MOD. - AIR BAG DRIVER 1 RETURN |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1226 |
Service Part Number: BU2Z-14S411-BJA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Squib - Airbag (Passenger) |
