Connector End View (C215) - Inline

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Inline C215

Description

Inline

Color

Base Part #

Service Pigtail

Not Available

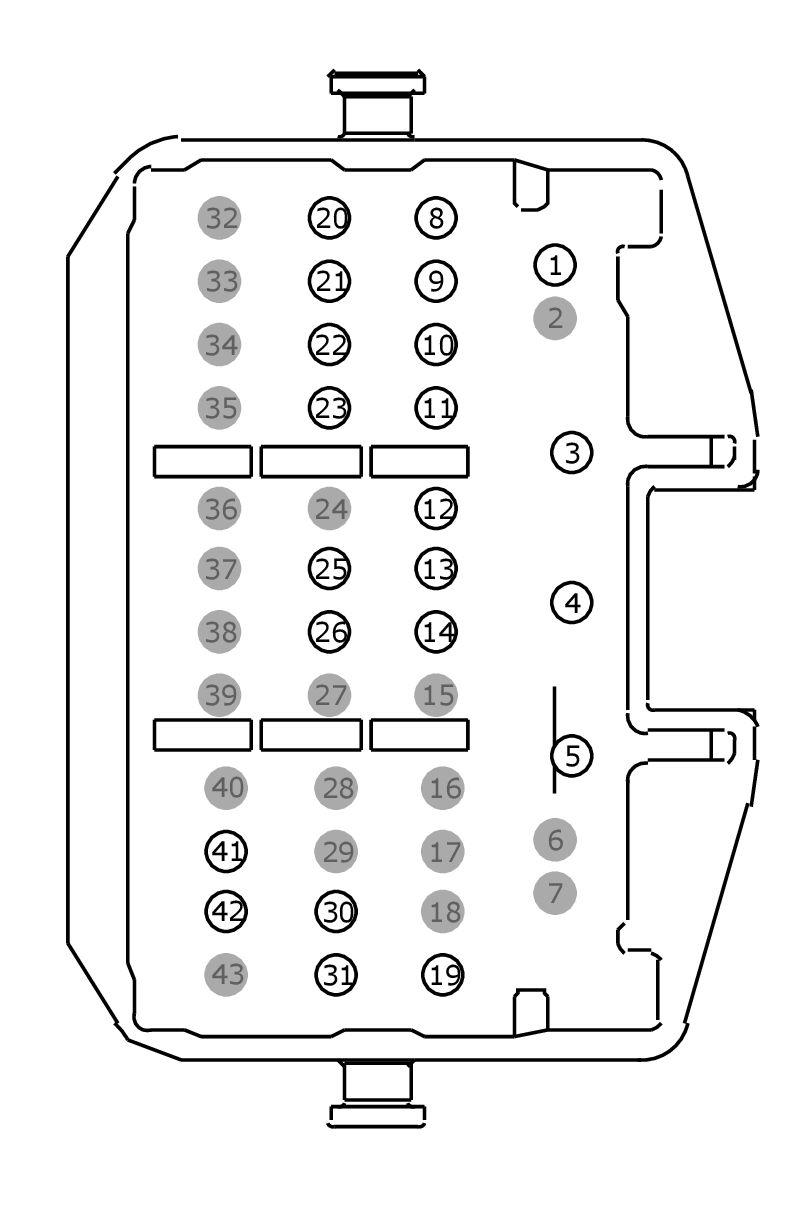

MALE

Harness 15K857

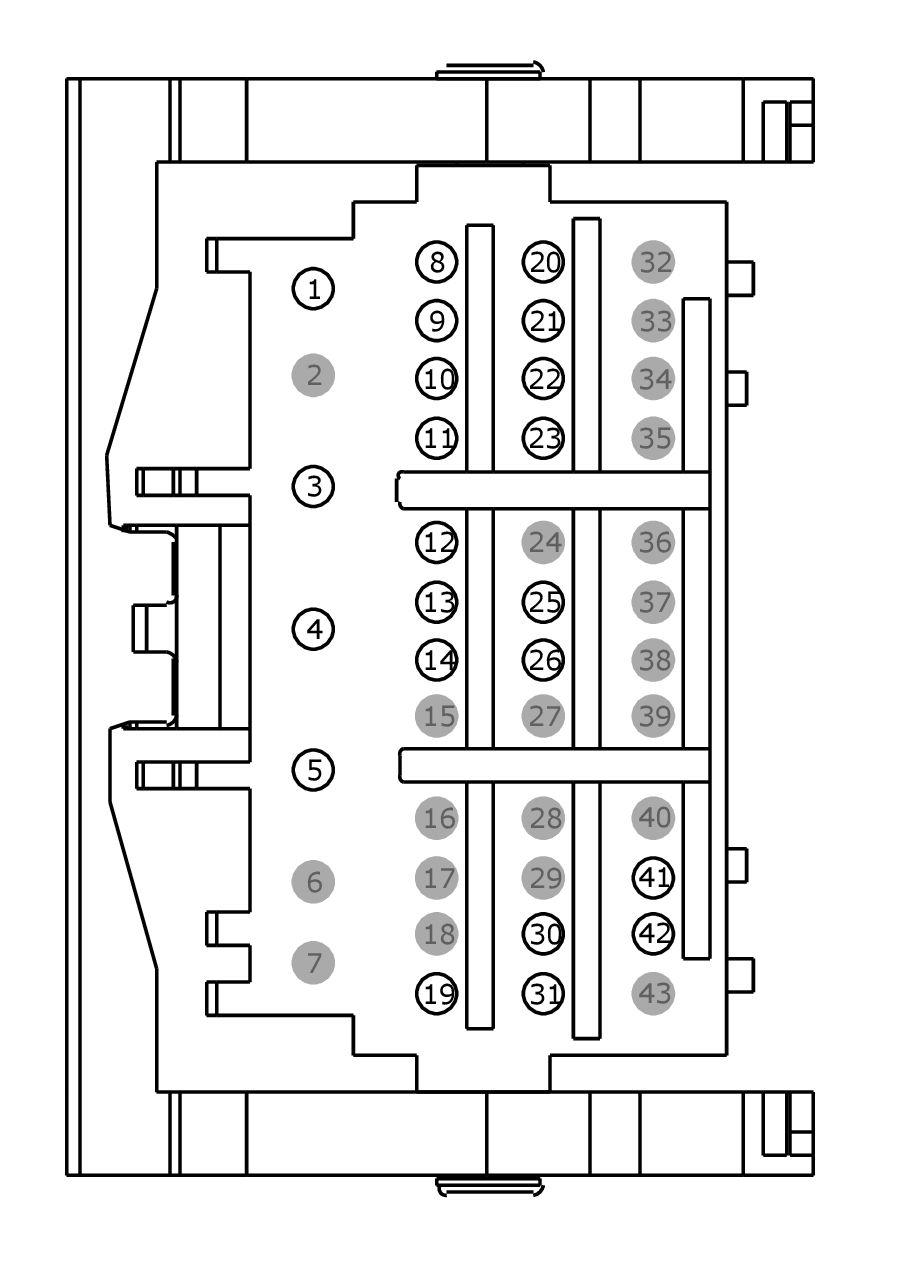

FEMALE

Harness 14401

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	CBP19 (BN-WH)	12
2	*	*
3	CBP17 (BN-GN)	18	15K857
4	CLN38 (BU-WH)	20	15K857
5	GD138 (BK-WH)	12
6	*	*
7	*	*
8	CCA47 (BU-WH)	22
9	CHS76 (BN-VT)	22
10	CHS77 (GN-VT)	22
11	CLN17 (BN)	22
12	CMP18 (GN-BN)	22
13	CMP02 (GN-BU)	22
14	CMP32 (GN)	22
15	*	*
16	*	*
17	*	*
18	*	*
19	RME45 (YE-GN)	22	SYNC GEN 1
20	VME38 (WH-OG)	22	SYNC GEN 1
21	GD133 (BK)	22
22	RPK06 (GN-OG)	22
23	VPK06 (GY-VT)	22
24	*	*
25	CYD03 (BN-YE)	22
26	LYA03 (YE-VT)	22
27	*	*
28	*	*
29	*	*
30	DME37 (*)	22	SYNC GEN 1
31	VME37 (GY-VT)	22	SYNC GEN 1
32	*	*
33	*	*
34	*	*
35	*	*
36	*	*
37	*	*
38	*	*
39	*	*
40	*	*
41	VME67 (VT-GY)	20
42	RME67 (BN-WH)	20

Pin	Circuit	Gauge	Qualifier
1	CBP19 (BN-WH)	12
2	*	*
3	VLN30 (BU-WH)	20	14401
4	VLN38 (BU-WH)	20	14401
5	GD138 (BK-WH)	12
6	*	*
7	*	*
8	CCA47 (BU-WH)	22
9	CHS76 (BN-VT)	22
10	CHS77 (GN-VT)	22
11	CLN17 (BN)	22
12	CMP18 (GN-BN)	22
13	CMP02 (GN-BU)	22
14	CMP32 (GN)	22
15	*	*
16	*	*
17	*	*
18	*	*
19	RME45 (YE-GN)	22	SYNC GEN 1
20	VME38 (WH-OG)	22	SYNC GEN 1
21	GD133 (BK)	22
22	RPK06 (GN-OG)	22
23	VPK06 (GY-VT)	22
24	*	*
25	CYD03 (BN-YE)	22
26	LYA03 (YE-VT)	22
27	*	*
28	*	*
29	*	*
30	DME37 (*)	22	SYNC GEN 1
31	VME37 (GY-VT)	22	SYNC GEN 1
32	*	*
33	*	*
34	*	*
35	*	*
36	*	*
37	*	*
38	*	*
39	*	*
40	*	*
41	VME67 (VT-GY)	20
42	RME67 (BN-WH)	20
