Connector End View (C214) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C214
Description
Inline
Color
Base Part #
Service Pigtail
Not Available

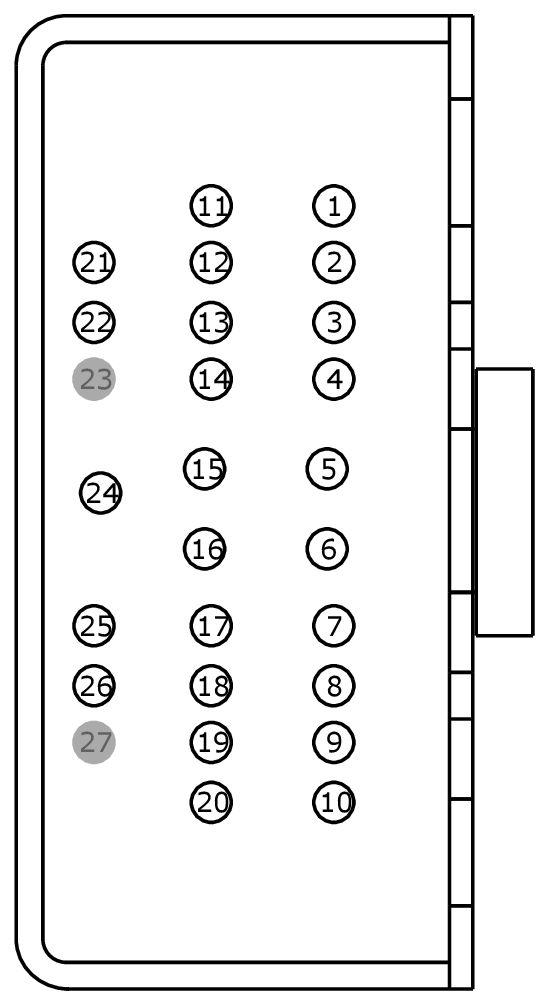

MALE
Harness 14K733

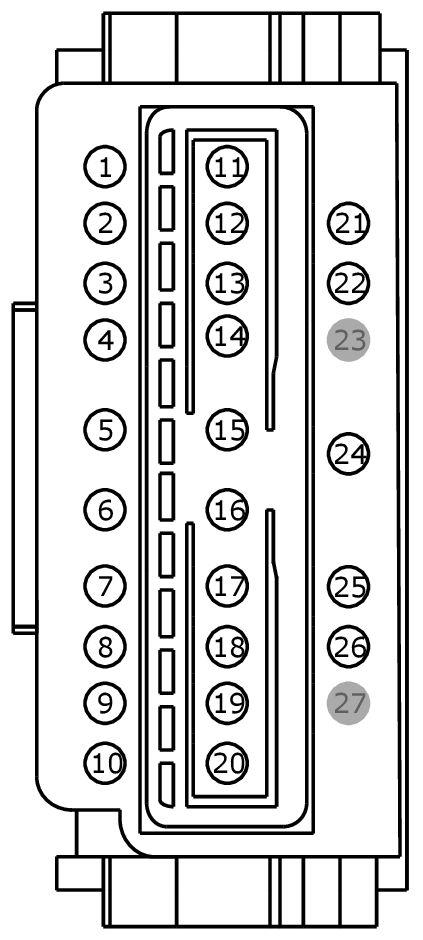

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | SBP06 (BN-RD) | 20 | 14K733 |
| 2 | CDC79 (GN-BN) | 18 | 14K733 - with ST series |
| 2 | VE213 (BU-WH) | 18 | 14K733 - with Engine start-stop |
| 3 | VYD01 (GY-VT) | 20 | 14K733 |
| 4 | CDC35 (BU-WH) | 20 | 14K733 |
| 5 | VRP01 (WH-GN) | 18 | 14K733 |
| 6 | RRP01 (VT-WH) | 18 | 14K733 |
| 7 | CET44 (YE-BU) | 20 | 14K733 |
| 8 | CLF06 (BN-GN) | 16 | with HID |
| 9 | SBB33 (RD) | 20 | 14K733 |
| 10 | CET61 (BN-VT) | 20 | 14K733 |
| 11 | CBB37 (WH) | 18 | with HID |
| 12 | CLF07 (GY-OG) | 16 | with HID |
| 13 | CET16 (WH-BU) | 20 | 14K733 |
| 14 | CBB28 (GY-VT) | 20 | |
| 15 | CCA47 (BU-WH) | 20 | 14K733 - GTDI |
| 16 | CYD05 (YE) | 12 | |
| 17 | VRP01 (WH-GN) | 18 | 14K733 |
| 18 | RRP01 (VT-WH) | 18 | 14K733 |
| 19 | CDC64 (WH-BU) | 20 | |
| 20 | VLF32 (YE) | 20 | 14K733 - with HID |
| 21 | VLF33 (BU) | 20 | 14K733 - with HID |
| 22 | CET62 (WH-GN) | 20 | 14K733 |
| 23 | * | * | |
| 24 | CBB28 (GY-VT) | 10 | 14K733 - without stop/start |
| 24 | SYV01 (RD) | 10 | 14K733 - with stop/start |
| 25 | CMF10 (GN-YE) | 20 | 14K733 |
| 26 | RET24 (BN-BU) | 20 | 14K733 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | SBP06 (BN-RD) | 22 | 14401 |
| 2 | VE213 (BU-WH) | 20 | 14401 |
| 3 | VYD01 (GY-VT) | 22 | 14401 |
| 4 | CBP27 (RD) | 22 | 14401 - with IA |
| 4 | CDC35 (BU-WH) | 18 | 14401 - without IA |
| 5 | VRP01 (WH-GN) | 20 | 14401 |
| 6 | RRP01 (VT-WH) | 20 | 14401 |
| 7 | CET44 (YE-BU) | 22 | 14401 |
| 8 | CLF06 (BN-GN) | 16 | with HID |
| 9 | SBB33 (RD) | 22 | 14401 |
| 10 | CET61 (BN-VT) | 22 | 14401 |
| 11 | CBB37 (WH) | 18 | with HID |
| 12 | CLF07 (GY-OG) | 16 | with HID |
| 13 | CET16 (WH-BU) | 20 | 14401 |
| 14 | CBB28 (GY-VT) | 20 | 14401 |
| 15 | CCA47 (BU-WH) | 22 | 14401 - GTDI |
| 16 | CYD05 (YE) | 12 | |
| 17 | VRP02 (BN-VT) | 20 | 14401 |
| 18 | RRP02 (GN-BN) | 20 | 14401 |
| 19 | CDC64 (WH-BU) | 20 | |
| 20 | VLF32 (YE) | 22 | 14401 |
| 21 | VLF33 (BU) | 22 | 14401 |
| 22 | CET62 (WH-GN) | 22 | 14401 |
| 23 | * | * | |
| 24 | CBB28 (GY-VT) | 10 | 14401 - without stop/start |
| 24 | SYV01 (RD) | 10 | 14401 - with stop/start |
| 25 | CBR11 (BU-RD) | 20 | 14401 |
| 26 | RET24 (BN-BU) | 22 | 14401 |
