Connector End View (C213) - INLINE
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C213
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14401
FEMALE
Harness 14C210
| Pin | Circuit | Gauge | Qualifier |
| 1 | RH105 (GN) | 22 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | RH105 (GN) | 22 |
| Available Pigtail Kits | |

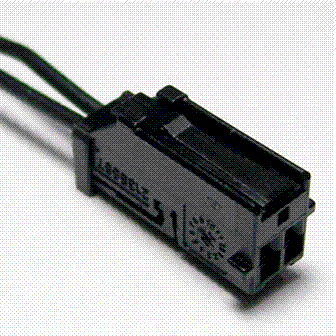

| Pigtail Kit Part Number WPT-1477 |
Service Part Number: GU2Z-14S411-MA Gauge: 20 Pin material: Tin Cavities: 2 Vehicle Uses: Sensor - A/C Evaporator Temperature Sensor - Liftgate Obstacle |

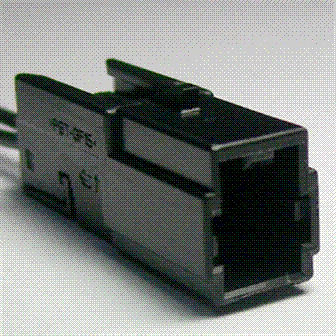

| Pigtail Kit Part Number WPT-1412 |
Service Part Number: EU2Z-14S411-TA Gauge: 20 Pin material: Tin Cavities: 2 Vehicle Uses: Mirror - Vanity Sensor - A/C Evaporator Temperature |
