Connector End View (C212) - Inline

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Inline C212

Description

Inline

Color

Base Part #

Service Pigtail

See Below

MALE

Harness 14K733

FEMALE

Harness 14401

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	CBB28 (GY-VT)	10	14K733

Pin	Circuit	Gauge	Qualifier
1	CBB28 (GY-VT)	10	14401 - EMTC
1	CBP18 (GY-OG)	10	14401 - DATC

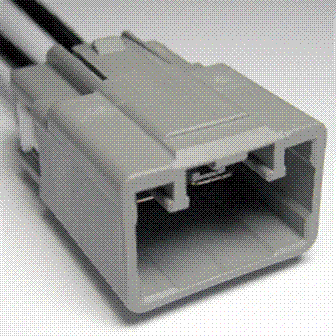

Available Pigtail Kits
Pigtail Kit Part Number WPT-1190 Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-EFAB Gauge: 10 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Terminal - Rear Window Defroster Grid
Pigtail Kit Part Number WPT-1486 Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-PB Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses: Inverter - DC to AC Module - Heated Seat Module - Lighting Control Module - Seat Memory Module - Variable Speed Blower Controller Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Relay - Blower Motor Relay - Trailer Tow Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) Terminal - Rear Window Defroster Grid Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-236 Courtesy of FORD MOTOR COMPANY	Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front)
