Connector End View (C211) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C211
Description
Inline
Color
BK
Base Part #
Service Pigtail
Not Available

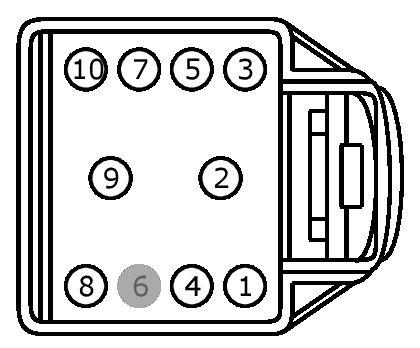

MALE
Harness 14401

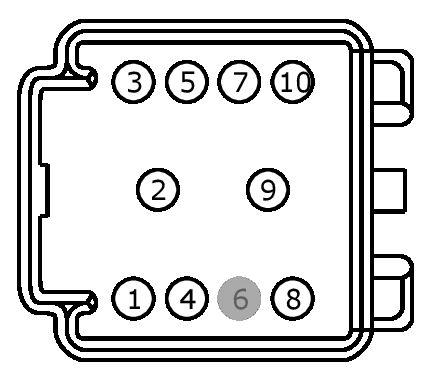

FEMALE
Harness 14335
| Pin | Circuit | Gauge | Qualifier |
| 1 | VMM13 (YE-GN) | 20 | |
| 2 | GD138 (BK-WH) | 14 | |
| 3 | RMM13 (BU) | 20 | |
| 4 | CBP17 (BN-GN) | 20 | |
| 5 | VLN30 (BN-GN) | 22 | |
| 6 | * | * | |
| 7 | VLN30 (BN-GN) | 22 | |
| 8 | CBR16 (WH-BN) | 22 | 14401 |
| 9 | CBP80 (OG-BK) | 14 | 14401 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | VMM13 (YE-GN) | 20 | |
| 2 | GD138 (BK-WH) | 14 | |
| 3 | RMM13 (BU) | 20 | |
| 4 | CBP17 (BN-GN) | 20 | |
| 5 | CLN11 (GY) | 22 | without ambient lighting |
| 5 | VLN30 (BN-GN) | 22 | with ambient lighting |
| 6 | * | * | |
| 7 | VLN30 (BN-GN) | 22 | with ambient lighting |
| 7 | VLN33 (GY-VT) | 22 | without ambient lighting |
| 8 | CPR22 (WH-BN) | 22 | 14335 - with roof opening panel |
| 9 | CBP80 (OG-BK) | 14 | 14335 - with roof opening panel |
