Connector End View (C209) - FOOTWELL LAMP, LEFT FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C209
Description
FOOTWELL LAMP, LEFT FRONT
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP17 (BN-GN) | 20 | FUSE OUTPUT OR CIRCUIT BREAKER | |
| 2 | CLN38 (BN-WH) | 20 | LIN - COURTESY LAMPS |

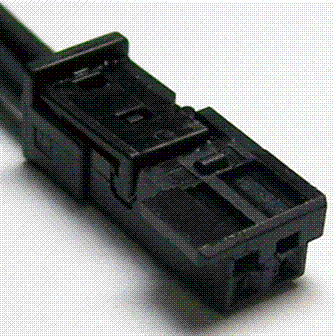

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1195 |
Service Part Number: BU2Z-14S411-ADA Gauge: 18 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Lamp - Storage Compartment - Trunk |
