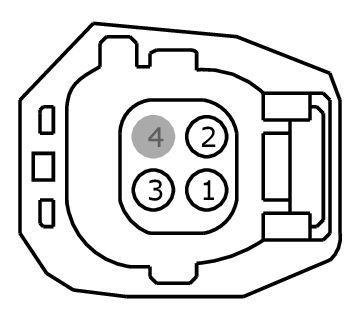

Connector End View (C192) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C192
Description
Inline
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14K733
FEMALE
Harness 14C361
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD130 (BK-YE) | 20 | |
| 2 | CBB32 (GN-VT) | 20 | |
| 3 | CHF03 (GN-OG) | 20 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | GD130 (BK-YE) | 20 | |
| 2 | CBB32 (GN-VT) | 20 | |
| 3 | CHF03 (GN-OG) | 20 |
| Available Pigtail Kits | |

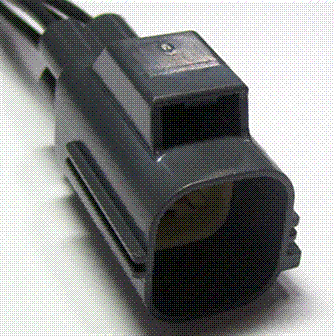

| Pigtail Kit Part Number WPT-1012 |
Service Part Number: 9U2Z-14S411-PA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses: Motor - Windshield Wiper Radio - Amplifier |
