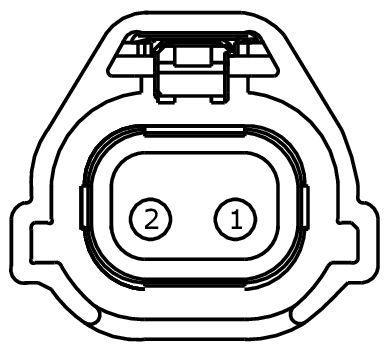

Connector End View (C182) - FUEL INJECTOR 2
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C182
Description
FUEL INJECTOR 2
Color
GY
Harness
14B485
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE206 (GY-YE) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) | |
| 2 | RE206 (BU-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1282 |
Service Part Number: CU2Z-14S411-XA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Fuel Injector |
