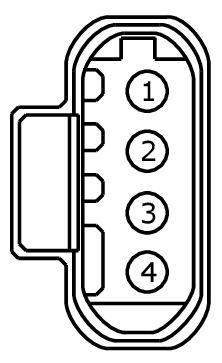

Connector End View (C167) - TRANSMISSION RANGE (TR) SENSOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C167
Description
TRANSMISSION RANGE (TR) SENSOR
Color
Harness
7G276
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (GN) |
22 |
TRS INPUT |
| 2 |
* (BK) |
20 |
GROUND TRS |
| 3 |
* (WH-GN) |
22 |
5V SUPPLY TRS |
| 4 |
* (GN) |
20 |
TRS INPUT |
