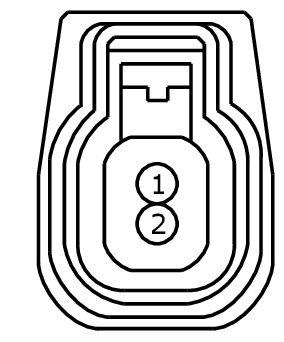

Connector End View (C164) - INPUT SHAFT SPEED SENSOR 2
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C164
Description
INPUT SHAFT SPEED SENSOR 2
Color
BK
Harness
7G276
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (BU) |
22 |
ISS2 SPEED SENSOR SUPPLY |
| 2 |
* (WH-BU) |
22 |
ISS2 INPUT SPEED |
