Connector End View (C163) - AUXILIARY COOLANT PUMP MOTOR

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C163

Description

AUXILIARY COOLANT PUMP MOTOR

Color

Harness

14C361

Base Part #

14A464

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD130 (BK-YE)	20	GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT
2	CBB32 (GN-VT)	20	FUSE OUTPUT OR CIRCUIT BREAKER
3	CHF03 (GN-OG)	20	CTRL MOD. - FUEL FIRED HEATER # FFH WATER PUMP +

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1287

Courtesy of FORD MOTOR COMPANY

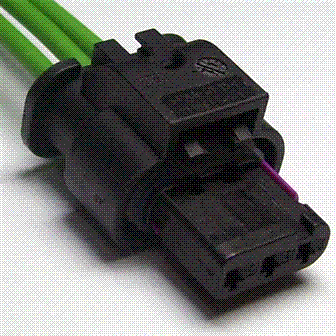

Service Part Number:

CU2Z-14S411-YA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Coil - Ignition

Sensor - Front Park Aid (FPA)

Sensor - Reverse Park Aide (RPA)
