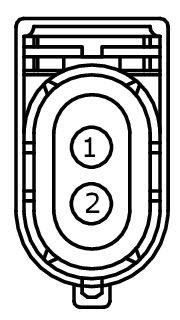

Connector End View (C152) - FOG LAMP, LEFT FRONT
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C152
Description
FOG LAMP, LEFT FRONT
Color
Harness
15K867
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CLF29 (BN) | 18 | CTRL MOD. - FOG LAMPS FRONT (LEFT) | |
| 2 | GD130 (BK-YE) | 18 | GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT |

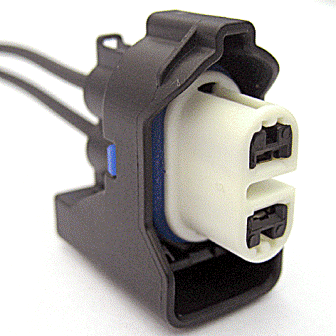

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-904 |
Service Part Number: 8U2Z-14S411-GA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Lamp - Ash Tray Lamp - Fog/Driving |
