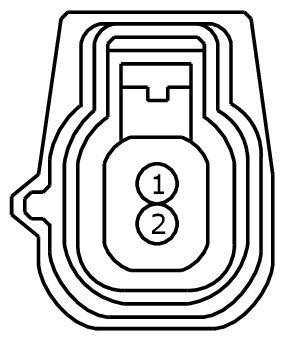

Connector End View (C143) - INPUT SHAFT SPEED SENSOR 1
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C143
Description
INPUT SHAFT SPEED SENSOR 1
Color
BK
Harness
7G276
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (PK-GN) |
22 |
ISS1 SPEED SENSOR SUPPLY |
| 2 |
* (GN-BN) |
22 |
ISS1 INPUT SPEED DIR |
