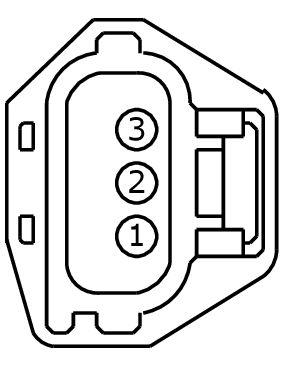

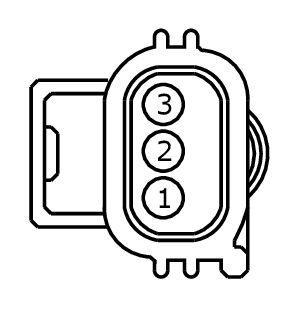

Connector End View (C140) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C140
Description
Inline
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 3C221
FEMALE
Harness 14K733
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBB44 (GN) | 20 | 3C221 |
| 2 | VDB04 (WH-BU) | 20 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBB42 (GN) | 20 | 14K733 |
| 2 | VDB04 (WH-BU) | 20 |
| Available Pigtail Kits | |

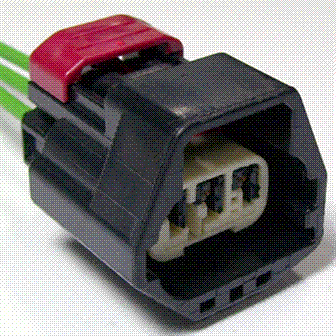

| Pigtail Kit Part Number WPT-493 |
Service Part Number: 3U2Z-14S411-NPA Gauge: 18 Pin material: Tin Cavities: 3 Vehicle Uses: Switch - Heater A/C Temp Control |

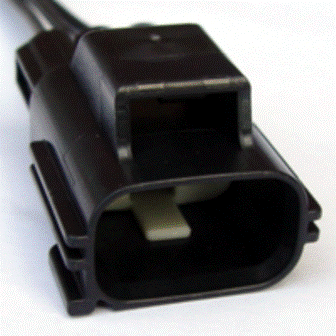

| Pigtail Kit Part Number WPT-1543 |
Service Part Number: 3U2Z-14S411-EXC Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses: Motor - Rear Window Wiper Pretensioner - Seat Belt (Passenger) Sensor - Brake Fluid Level Sensor - Manifold Absolute Pressure (MAP) Sensor - Yaw |
| Pigtail Kit Part Number WPT-1218 |
Service Part Number: 3U2Z-14S411-EXB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses: Motor - Rear Window Wiper Pretensioner - Seat Belt (Passenger) Sensor - Brake Fluid Level Sensor - Manifold Absolute Pressure (MAP) Sensor - Yaw |
