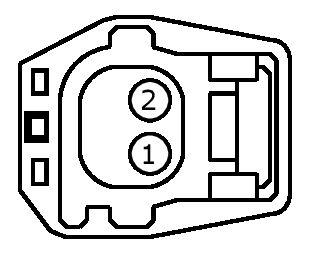

Connector End View (C138) - WASHER FLUID LEVEL SWITCH
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C138
Description
WASHER FLUID LEVEL SWITCH
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD120 (BK-GY) | 20 | GROUND - FENDER FRONT LEFT | |
| 2 | CMC20 (VT) | 20 | SWITCH - LOW LEVEL WASHER FLUID |

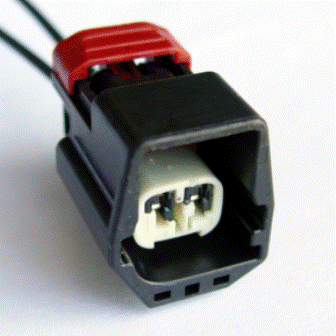

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-273 |
Service Part Number: 3U2Z-14S411-GVA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Sensor - Ambient Temp Sensor - Heated Thermostat |
