Connector End View (C110) - Inline
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Inline C110
Description
Inline
Color
Base Part #
Service Pigtail
See Below

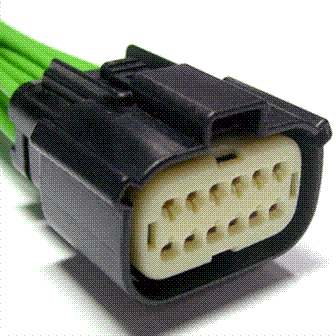

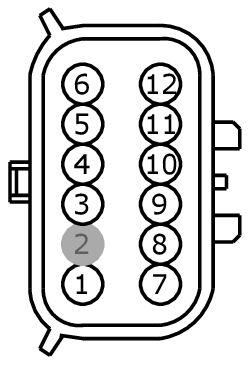

MALE
Harness 12C508

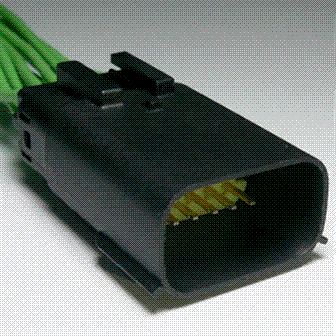

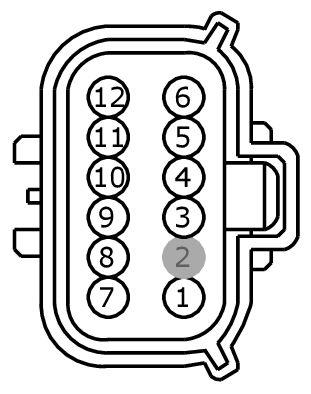

FEMALE
Harness 14B485
| Pin | Circuit | Gauge | Qualifier |
| 1 | RE238 (GN-VT) | 18 | 12C508 |
| 2 | * | * | |
| 3 | RE205 (YE-BU) | 16 | 12C508 |
| 4 | RE206 (BU-OG) | 16 | 12C508 |
| 5 | RE207 (GN-VT) | 16 | 12C508 |
| 6 | RE208 (BU) | 16 | 12C508 |
| 7 | VE727 (BU-BN) | 18 | 12C508 |
| 8 | LE238 (GY) | 18 | 12C508 |
| 9 | CE205 (GN-BU) | 16 | 12C508 |
| 10 | CE206 (GY-YE) | 16 | 12C508 |
| 11 | CE207 (VT-GY) | 16 | 12C508 |
| Pin | Circuit | Gauge | Qualifier |
| 1 | RE238 (GN-VT) | 16 | 14B485 |
| 2 | * | * | |
| 3 | RE205 (YE-BU) | 16 | 14B485 |
| 4 | RE206 (BU-OG) | 16 | 14B485 |
| 5 | RE207 (GN-VT) | 16 | 14B485 |
| 6 | RE208 (BU) | 16 | 14B485 |
| 7 | VE727 (BU-BN) | 20 | 14B485 |
| 8 | LE238 (GY) | 20 | 14B485 |
| 9 | CE205 (GN-BU) | 16 | 14B485 |
| 10 | CE206 (GY-YE) | 16 | 14B485 |
| 11 | CE207 (VT-GY) | 16 | 14B485 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1485 |
Service Part Number: HU2Z-14S411-CA Gauge: 16 Pin material: Silver Cavities: 12 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1544 |
Service Part Number: AU2Z-14S411-AMB Gauge: 16 Pin material: Silver Cavities: 12 Vehicle Uses: Connector - Inline Lamp - Front Turn Lamp - Headlamp - High/Low Beam Mirror - Sideview / Heated Module - Battery Energy Control Module - Extended Power Module - Gear Shift Module - Glow Plug Module - Transmission Ranger Control Trailer Tow - Vehicle Side |
| Pigtail Kit Part Number WPT-1125 |
Service Part Number: AU2Z-14S411-AMA Gauge: 16 Pin material: Silver Cavities: 12 Vehicle Uses: Connector - Inline Mirror - Sideview |
