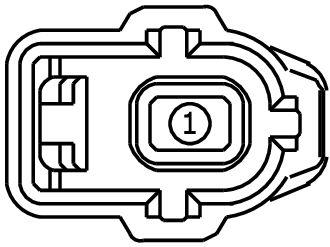

Connector End View (C103) - OIL PRESSURE SWITCH
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C103
Description
OIL PRESSURE SWITCH
Color
NA
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE908 (BU-BN) | 20 | SWITCH - ENGINE OIL LEVEL (EOL) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-439 |
Service Part Number: 3U2Z-14S411-MHA Gauge: 14 Pin material: Tin Cavities: 1 Vehicle Uses Sensor - Oil Pressure Switch - Oil Sending Unit |
