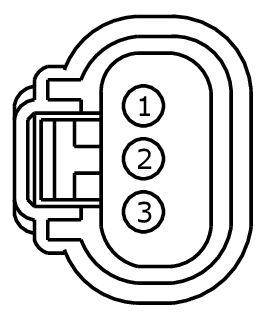

Connector End View (C101) - CRANKSHAFT POSITION (CKP) SENSOR
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C101
Description
CRANKSHAFT POSITION (CKP) SENSOR
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LE135 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION (CKP) SENSOR (VREF) | |
| 2 | VE711 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION (CKP) SENSOR (CKP) | |
| 3 | RE135 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION (CKP) SENSOR (SIGRTN) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-990 |
Service Part Number: 8U2Z-14S411-ZB Gauge: 14 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure |
