Pinpoint Test QA: Unable To Activate Self-Test/Network Communication Error: Introduction
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2016 Lincoln Navigator, 2016 Lincoln MKZ, 2016 Lincoln MKX, 2016 Lincoln MKT, and 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- unable to communicate with powertrain control module (PCM)
- unable to activate the PCM self-test
- incorrect self-test procedure
- harness circuits: ISP-R, PCMRC, PWRGND and VPWR

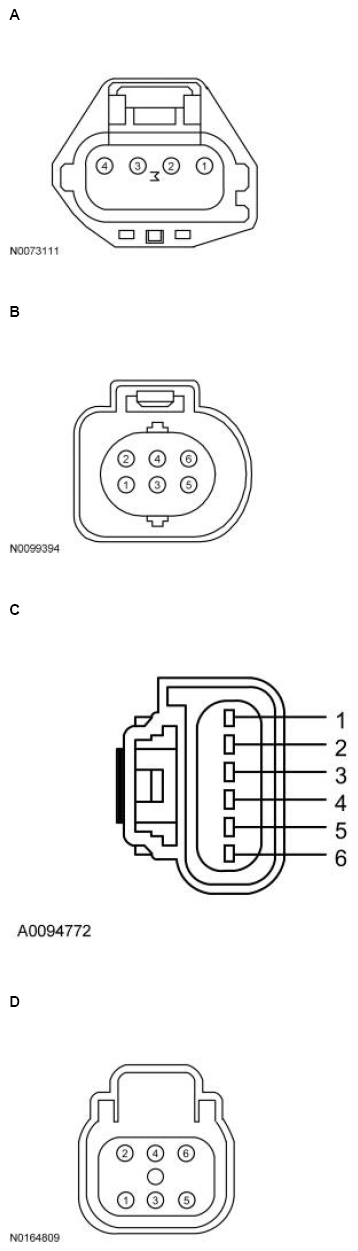

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, Explorer GTDI 3.5L, F-650/F-750, F-Series Super Duty 6.8L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Motorhome/Stripped Chassis/Step Van, Taurus GTDI 3.5L |
A | 3 2 |
ETCRTN ETCREF |
| EcoSport 1.6L, Escape/Kuga 1.6L, KA 1.5L, Transit Connect 1.6L |
B 6 ETCREF |
2 | ETCRTN |
| EcoSport 2.0L | C | 5 4 |
ETCRTN ETCREF |
| Fiesta 1.0L, Focus 1.0L, Fusion 1.5L, KA 1.0L |
B | 3 1 |
ETCRTN ETCREF |
| Fiesta 1.6L | D | 2 6 |
ETCRTN ETCREF |
| All other vehicles | C | 4 5 |
ETCRTN ETCREF |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series 5.4L | 190-PIN | B22, B50, B69, B70 B30, B67, B68 B38 B42 |
PWRGND VPWR PCMRC ISP-R |
| E-Series 6.8L, Edge 3.5L, Explorer TiVCT 3.5L, Explorer 3.7L, F-150 TiVCT 3.5L, F-150 5.0L, F-650/F-750, Flex TiVCT 3.5L, MKS 3.7L, MKT 3.7L, MKX 3.7L, Motorhome/Stripped Chassis/Step Van, Mustang 3.7L, Mustang 5.0L, Mustang 5.2L, Taurus TiVCT 3.5L, Taurus 3.7L, Transit 3.7L |
198 PIN | B100, B102, B103, B5 B97, B99 B20 B64 |
PWRGND VPWR PCMRC ISP-R |
| EcoSport 2.0L Manual Transmission, EcoSport 1.6L |
80 PIN | B27, B28, B9 B2 B29 B43 |
PWRGND VPWR PCMRC ISP-R |
| EcoSport 2.0L Automatic Transmission | 128 PIN | B35, B36, B47, B48, T1 B11, B12, B31 B1 B8 |
PWRGND VPWR PCMRC ISP-R |
| Escape/Kuga 2.5L, Fusion 2.5L, MKZ 3.7L |
190-PIN | B50, B69, B70 B67, B68 B38 B42 |
PWRGND VPWR PCMRC ISP-R |
| F-Series Super Duty | 190-PIN | B69, B70 B67, B68 B38 B42 |
PWRGND VPWR PCMRC ISP-R |
| Fiesta GTDI 1.6L, Fiesta 1.0L, Focus 1.0L |
198 PIN | B96, B97, B99 B101, B102, B103 B58 B48 |
PWRGND VPWR PCMRC ISP-R |
| Fiesta TiVCT 1.6L | 128 PIN | B35, B36, B47, B48 B11, B12, E13, E37 B1 B8 |
PWRGND VPWR PCMRC ISP-R |
| Focus GDI 2.0L | 154 PIN | B1, B2, B4 B5, B6 B27 B15 |
PWRGND VPWR PCMRC ISP-R |
| KA | 128 PIN | B48, E12, T23, T31, T32 B36, E24 B37 B45 |
PWRGND VPWR PCMRC ISP-R |
| Transit Connect 2.5L | 198 PIN | B100, B102, B103, B5 B97, B99 B20 B41 |
PWRGND VPWR PCMRC ISP-R |
| All other vehicles | 198 PIN | B96, B97, B98, B99 B101, B102, B103 B58 B48 |
PWRGND VPWR PCMRC ISP-R |
