Pinpoint Test HU: Intake Air Systems: Introduction

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2016 Lincoln Navigator, 2016 Lincoln MKZ, 2016 Lincoln MKX, 2016 Lincoln MKT, and 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

air cleaner assembly (including air cleaner element) (9600)
air inlet tube (9F843)
clean air tube hose and resonator (9R504) and (9F593)
intake manifold runner control bank 1 (IMRC1) solenoid (9J559)
intake manifold runner control bank 2 (IMRC2) solenoid (9J559)
intake manifold runner control bank 1 (IMRC1) sensor (9P471)
intake manifold runner control bank 2 (IMRC2) sensor (9P471)
intake manifold tuning valve (IMTV) (9L490)
IMTV electric actuator assembly (9L490)
throttle body assembly (9E926)
harness circuits: IMRC, IMRC1, IMRC1A, IMRC2, IMRC2A, IMTV, SIGRTN, VPWR and VREF
PCM (12A650)

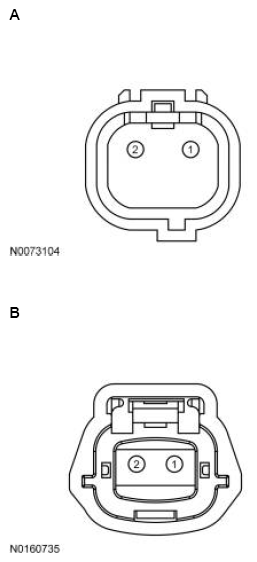

Fig 1: Identifying Intake Manifold Runner Control Bank 1 (IMRC1) Solenoid Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
EcoSport	A	1 2	VPWR IMRC1A
All other vehicles	B	1 2	VPWR IMRC1A

Fig 2: Identifying Intake Manifold Runner Control Bank 1 (IMRC1) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	IMRC1 (Intake Manifold Runner Control Bank 1)
3	SIGRTN (Signal Return)
2	VREF (Reference Voltage)

Fig 3: Identifying Intake Manifold Runner Control Bank 2 (IMRC2) Solenoid Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	VPWR (Vehicle Power)
2	IMRC2A (Intake Manifold Runner Control Bank 2 Actuator)

Fig 4: Identifying Intake Manifold Runner Control Bank 2 (IMRC2) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	IMRC2 (Intake Manifold Runner Control Bank 2)
3	SIGRTN (Signal Return)
2	VREF (Reference Voltage)

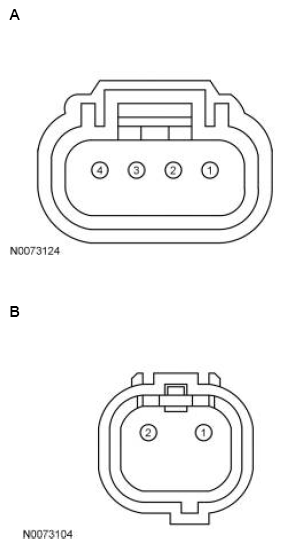

Fig 5: Identifying Intake Manifold Tuning Valve (IMTV) Actuator Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-Series Super Duty, F-650/F-750, Motorhome/Stripped Chassis/Step Van	A	3 1	IMTV VPWR
EcoSport	B	2 1	IMTV VPWR

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES .

Vehicle	Connector	Pin	Circuit
EcoSport 2.0L Automatic Transmission	128 PIN	E43, E46 E17 E6	SIGRTN IMRC1 IMTV
F-150	198 PIN	E29, E40, E49, E54 E44 E45 E59 E60	SIGRTN IMRC2 IMRC1 IMRC2A IMRC1A
F-650/F-750	198 PIN	E49, E55 E5	SIGRTN IMTV
F-Series Super Duty	190-PIN	E32 E14	SIGRTN IMTV
Motorhome/Stripped Chassis/Step Van	198 PIN	E49 E5	SIGRTN IMTV
Mustang 5.0L	198 PIN	E22, E32, E40, E49, E54 E44 E45 E59 E60	SIGRTN IMRC2 IMRC1 IMRC2A IMRC1A
Mustang 5.2L	198 PIN	E40, E49 E44 E45 E59 E60	SIGRTN IMRC2 IMRC1 IMRC2A IMRC1A
All other vehicles	80 PIN	E25, E78 E14 E1	SIGRTN IMRC1 IMTV
