Pinpoint Test B: Powertrain Control Module (Pcm) Power Relay: Introduction
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2016 Lincoln Navigator, 2016 Lincoln MKZ, 2016 Lincoln MKX, 2016 Lincoln MKT, and 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- harness circuits: B+, INJPWRM, ISP-R, PCMRC, and VPWR
- PCM power relay (12A646)
- PCM (12A650)

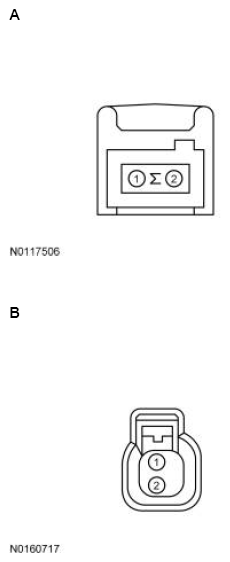

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| EcoSport 1.6L, KA 1.5L |
A | 1 | VPWR |
| Fiesta | B | 1 | VPWR |
| All other vehicles | B | 2 | VPWR |

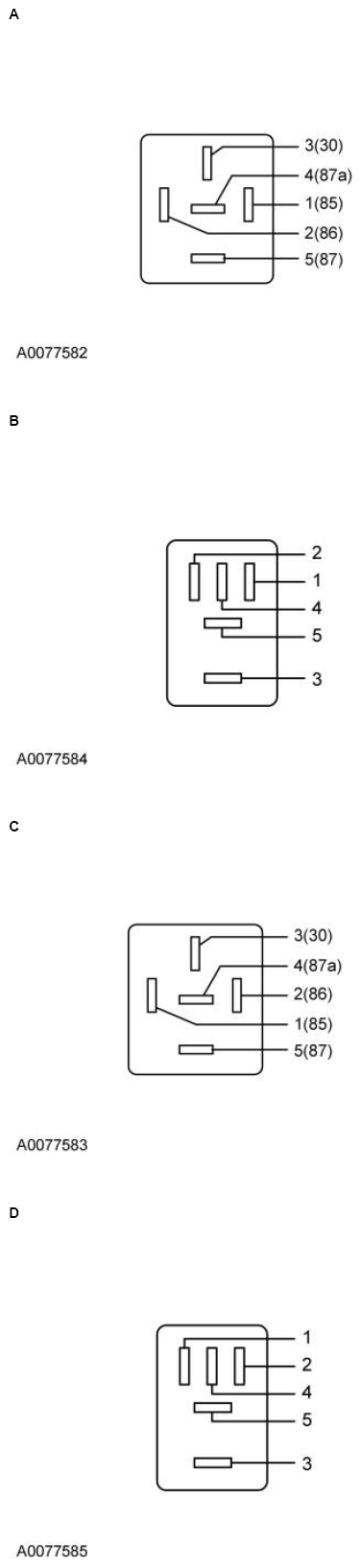

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| EcoSport, Escape/Kuga |
A | 5 2 1, 3 |
VPWR PCMRC B+ |
| Edge, F-150, Fusion, MKX, MKZ |
B | 5 1 2, 3 |
VPWR PCMRC B+ |
| Expedition, Focus, KA, MKC, Navigator, Transit, Transit Connect |
C | 5 2 1, 3 |
VPWR PCMRC B+ |
| F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van |
A | 5 1 2, 3 |
VPWR PCMRC B+ |
| Mustang | D | 3 2 1, 5 |
VPWR PCMRC B+ |
| All other vehicles | B | 5 2 1, 3 |
VPWR PCMRC B+ |
Powertrain Control Module (PCM) Connector
For PCM connector views or reference values, refer to REFERENCE VALUES .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series 5.4L | 190-PIN | B21 B30, B67, B68 B42 B38 |
INJPWRM VPWR ISP-R PCMRC |
| E-Series 6.8L, Edge 3.5L, F-150 TiVCT 3.5L, F-150 5.0L, F-650/F-750, Mustang 5.0L, Mustang 5.2L, Taurus 3.7L, Transit 3.7L |
198 PIN | B97, B99 B64 B20 |
VPWR ISP-R PCMRC |
| EcoSport 2.0L Manual Transmission, EcoSport 1.6L |
80 PIN | B2 B43 B29 |
VPWR ISP-R PCMRC |
| EcoSport 2.0L Automatic Transmission | 128 PIN | B11, B12, B31 B8 B1 |
VPWR ISP-R PCMRC |
| Escape/Kuga 2.5L | 190-PIN | B67, B68 B42 B38 |
VPWR ISP-R PCMRC |
| Explorer TiVCT 3.5L, Explorer 3.7L, MKX 3.7L, Motorhome/Stripped Chassis/Step Van, Mustang 3.7L |
198 PIN | E18 B97, B99 B64 B20 |
INJPWRM VPWR ISP-R PCMRC |
| F-Series Super Duty, Fusion 2.5L, MKZ 3.7L |
190-PIN | B21 B67, B68 B42 B38 |
INJPWRM VPWR ISP-R PCMRC |
| Fiesta TiVCT 1.6L | 128 PIN | B11, B12, E13, E37 B8 B1 |
VPWR ISP-R PCMRC |
| Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L |
198 PIN | B21 B101, B102, B103 B48 B58 |
INJPWRM VPWR ISP-R PCMRC |
| Flex TiVCT 3.5L, MKS 3.7L, MKT 3.7L, Taurus TiVCT 3.5L |
198 PIN | B21 B97, B99 B64 B20 |
INJPWRM VPWR ISP-R PCMRC |
| Focus GDI 2.0L | 154 PIN | B5, B6 B15 B27 |
VPWR ISP-R PCMRC |
| KA | 128 PIN | E29 B36, E24 B45 B37 |
INJPWRM VPWR ISP-R PCMRC |
| Transit Connect 2.5L | 198 PIN | B97, B99 B41 B20 |
VPWR ISP-R PCMRC |
| All other vehicles | 198 PIN | B101, B102, B103 B48 B58 |
VPWR ISP-R PCMRC |
