Roof Opening Panel Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Do not replace the roof opening panel glass motor and the shield motor individually. They must both be replaced as a pair.
NOTE: Roof opening panel front glass motor shown, roof opening panel shield motor similar. The roof opening panel front glass motor is located on the driver side and the roof opening panel shield motor is located on the passenger side.
  1. Fully close the roof opening panel glass.
    GFD275524Courtesy of FORD MOTOR COMPANY
  2. Fully open the roof opening panel shield.
    GFD275526Courtesy of FORD MOTOR COMPANY
  3. Lower the headliner. Refer to:Headliner - Lowering .

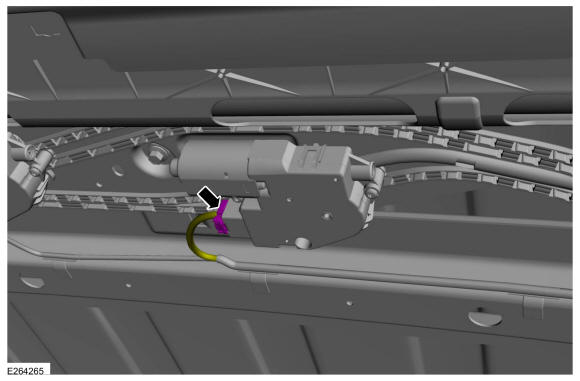

  4. Disconnect the opening panel motor electrical connector.
    GFD275568Courtesy of FORD MOTOR COMPANY

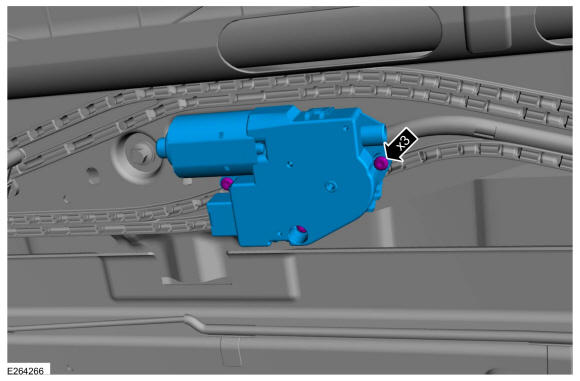

  5. Remove the bolts and the roof opening panel motor.

    Torque: 35 lb.in (4 Nm)

GFD275569Courtesy of FORD MOTOR COMPANY
