Roof Opening Panel Glass: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

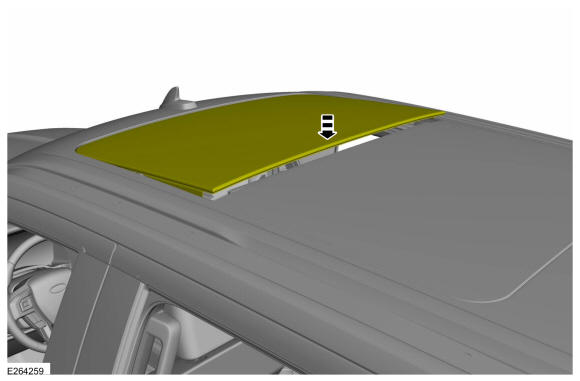

- Vent the roof opening panel glass.
-
NOTE: During installation, make sure the blind is fully seated. An audible noise will be heard when the blind seats to the lower bracket.
RH side shown, LH side similar. Remove the roof opening panel blind by pulling inward on the top and bottom of the roof opening panel blind and discard.
- Close the roof opening panel glass.
-
NOTE: RH side shown, LH side similar.

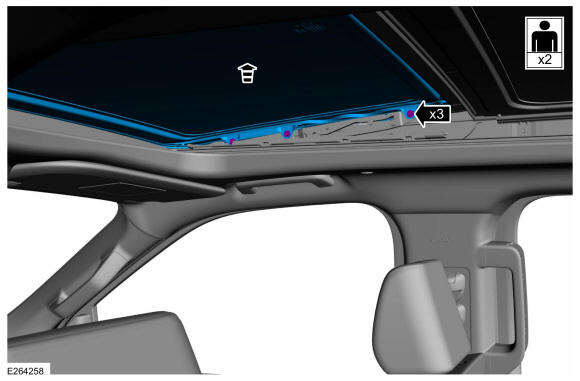

With the help of an assistant. Remove the bolts and the roof opening panel glass.
Torque: 35 lb.in (4 Nm)
