Roof Opening Panel Frame: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The air deflector must be installed with the roof opening panel in the open position.

If replacing the roof opening panel frame, remove the air deflector. Refer to: Air Deflector .
Fully close the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY
Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .
Fully open the roof opening panel shield.

Courtesy of FORD MOTOR COMPANY
Remove the headliner. Refer to:Headliner .
On both sides. Remove the side curtain airbags. Refer to: Side Curtain Airbag .

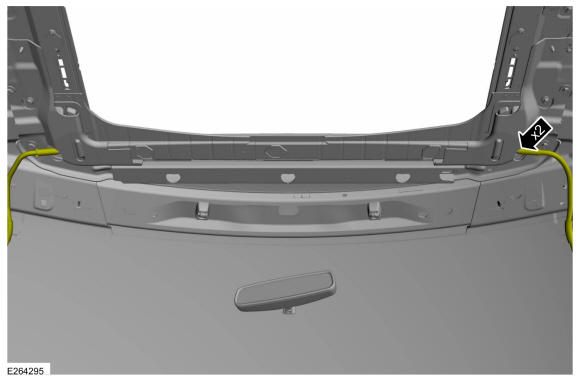

Detach the wiring harness pin-type retainer.

Courtesy of FORD MOTOR COMPANY

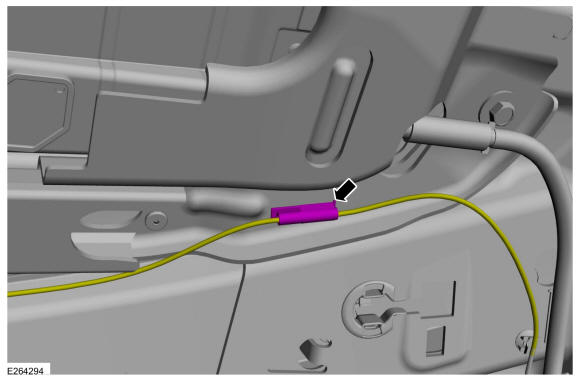

Disconnect the front drain tubes.

Courtesy of FORD MOTOR COMPANY

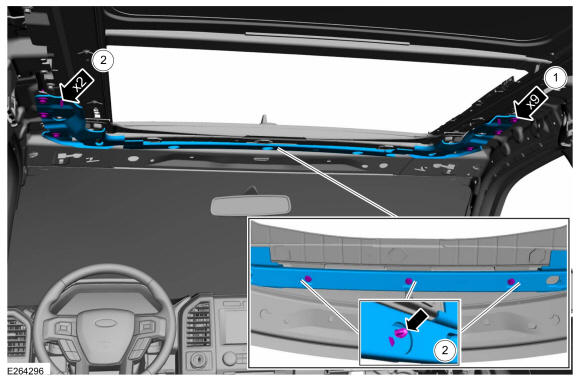

Remove the front beam.
1. Remove the bolts.
  Torque: 106 lb.in (12 Nm)
2. Detach the pin-type retainers, release the tabs and remove the front beam.
Courtesy of FORD MOTOR COMPANY

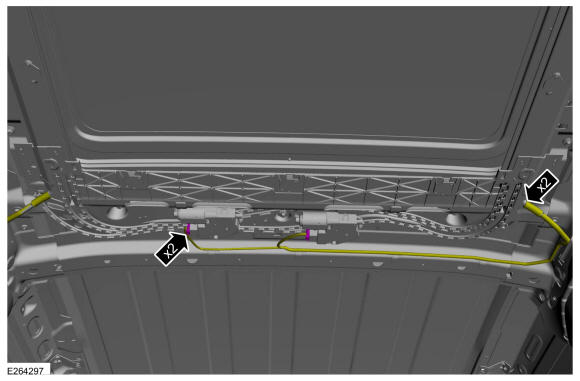

Disconnect the rear drain tubes and the roof opening panel motor electrical connectors.

Courtesy of FORD MOTOR COMPANY

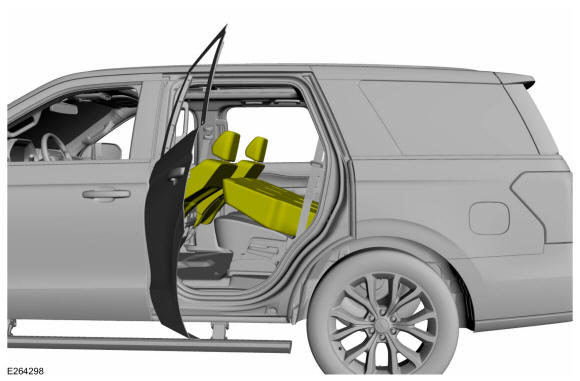

Position the front and second row seats as shown in the figure.

Courtesy of FORD MOTOR COMPANY

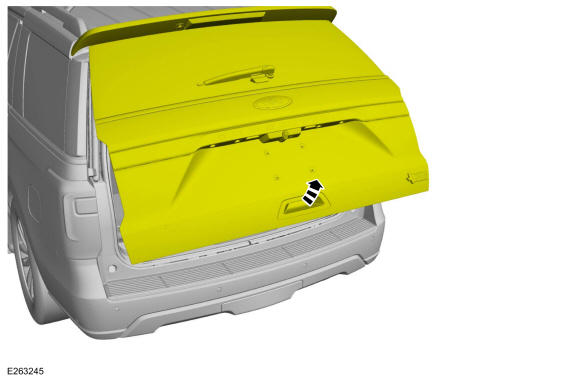

Open the liftgate.

Courtesy of FORD MOTOR COMPANY

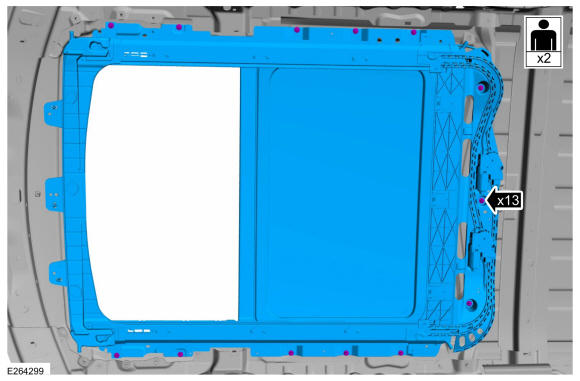

With the help of an assistant. Remove the bolts and the roof opening panel frame.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

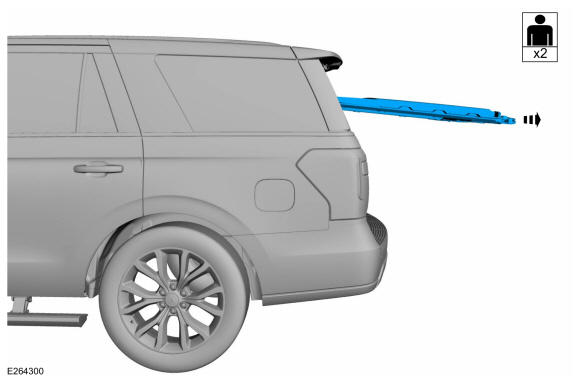

With the help of an assistant. Remove the roof opening panel frame out the rear of the vehicle.

Courtesy of FORD MOTOR COMPANY
