Air Deflector: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

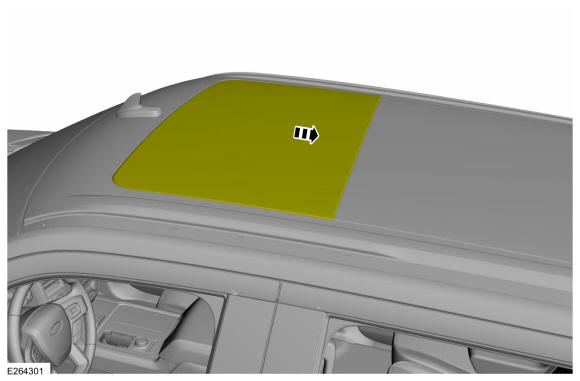

Fully open the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY

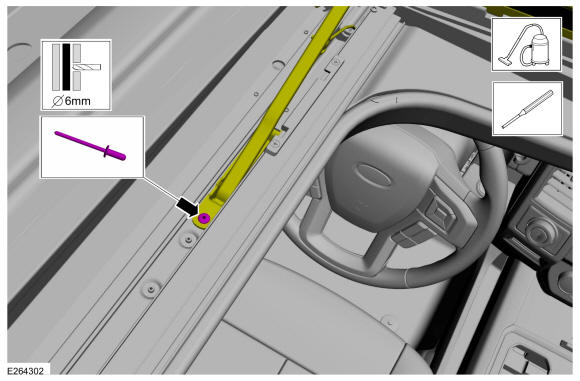

On both sides.Drill the rivets and position the air deflector arm aside.Use the General Equipment: Electric Drill Use the General Equipment: 6 mm Drill BitUse the General Equipment: PunchUse the General Equipment: Vacuum Cleaner

Courtesy of FORD MOTOR COMPANY

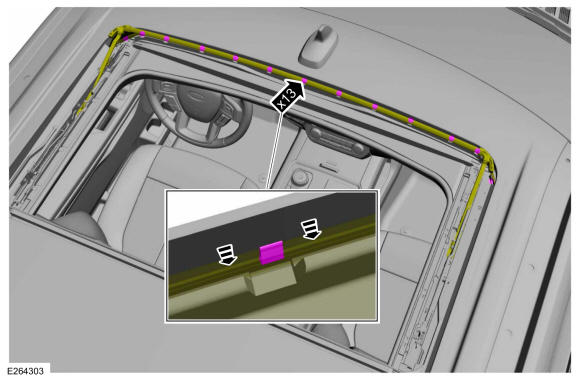

Push downward on the air deflector material and separate the material from the tabs.

Courtesy of FORD MOTOR COMPANY

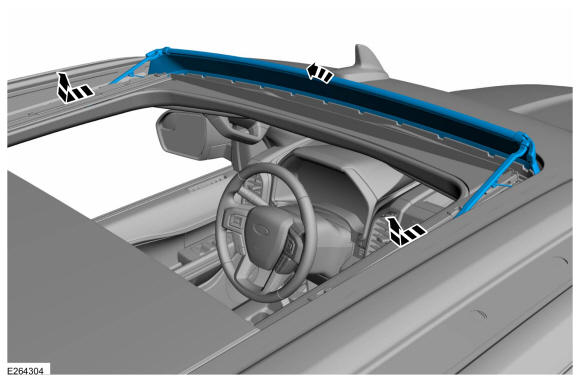

Slide the air deflector arms rearward in the frame rails, roll the arms out of the rails and remove the air deflector.

Courtesy of FORD MOTOR COMPANY
