Air Deflector: Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

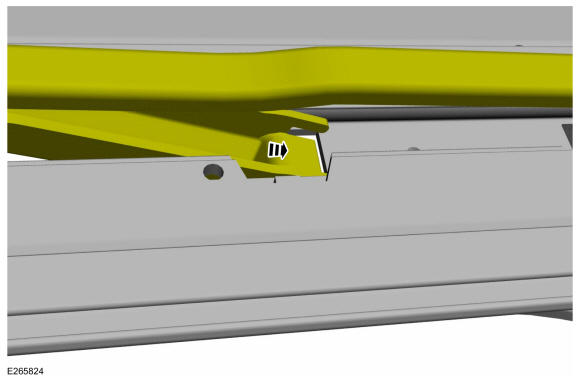

- On both sides.Insert the air deflector bracket to the track channel.

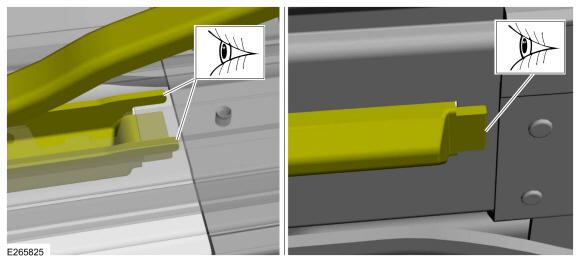

- On both sides.Make sure the air deflector bracket top and bottom tabs are properly fitted in place.

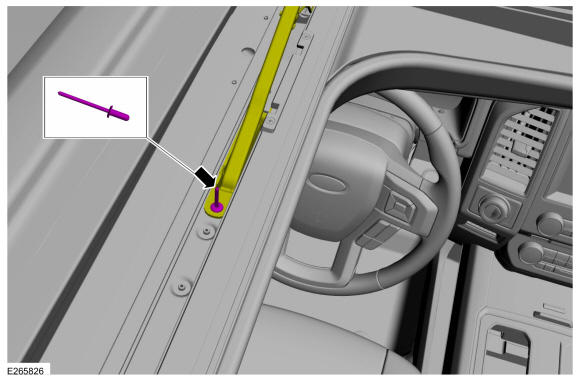

- On both sides.Install the air deflector arm and the rivet.
Item Blind Rivet 1 W790368-S900 Use the General Equipment: Rivet Gun

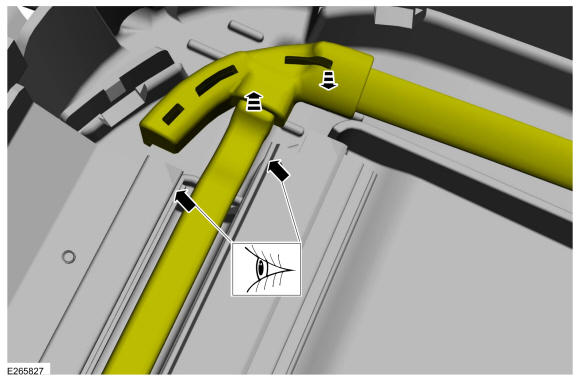

- Install the air deflector fabric material under the frame tabs.

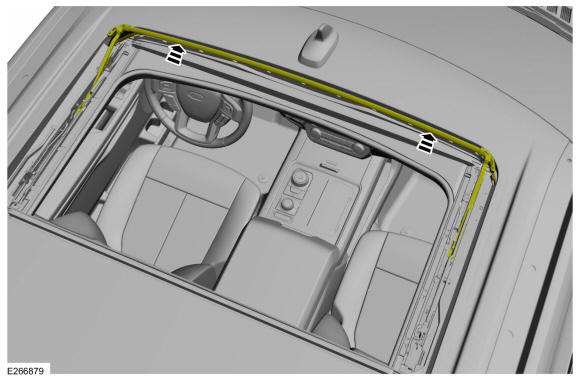

- On both sides.Cycle the air deflector up and down manually and check for the contact to the track channel.

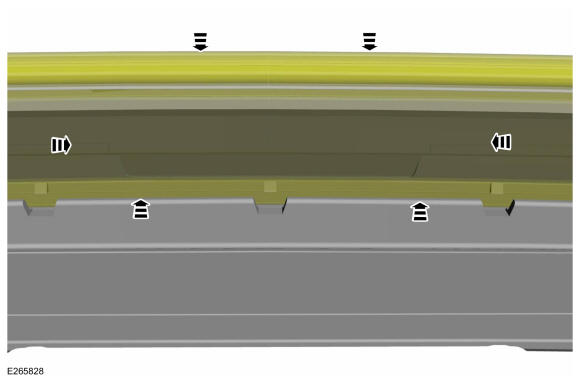

- If the air deflector is contacting to the track channel, adjust the air deflector fabric in the bottom channel to the side that is making the contact and cycle again.
- Repeat step 6 until the contact condition is eliminated.

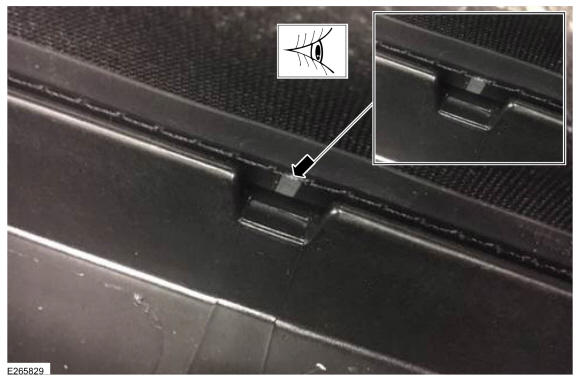

- Make sure the alignment mark on the deflector is aligned with the center frame tab opening. Move the deflector material from side-to-side as necessary.
- Carry out the roof opening panel initialization. Refer to: Power Roof Opening Panel Initialization .
