Section 1707 (Sunroof - Roof Opening Panel)
>>
Description And Operation
>>
Roof Opening Panel - Component Location
Roof Opening Panel - Component Location
WARNING:
This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

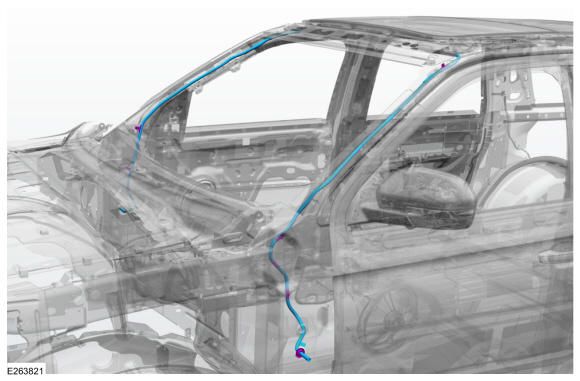

Roof Opening Panel Front Drain Hose Routing
Courtesy of FORD MOTOR COMPANY

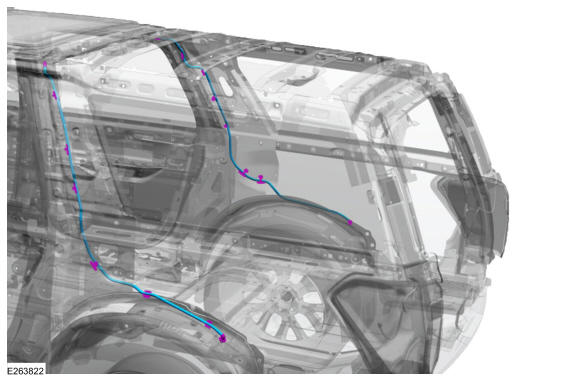

Roof Opening Panel Rear Drain Hose Routing
Courtesy of FORD MOTOR COMPANY
