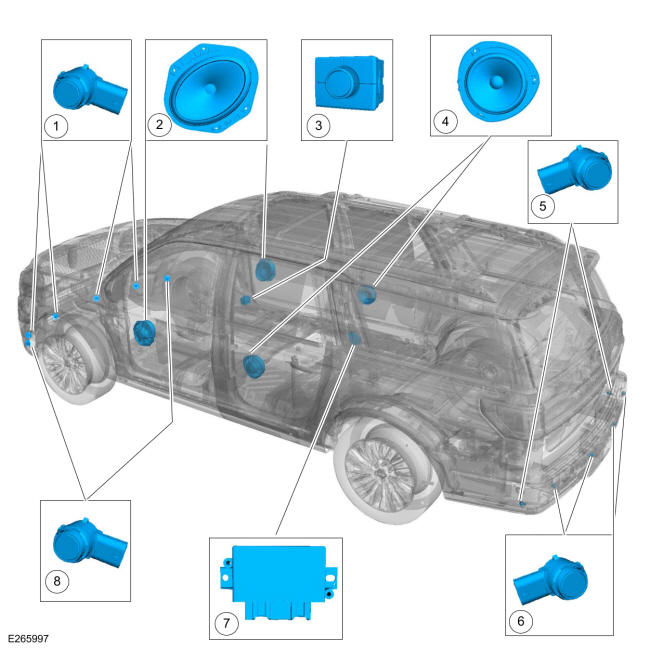

Component Location Parking Aid - Audible (With Active Park Assist)
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front parking aid sensors |
| 2 |
Front speakers (part of the audio system) |
| 3 |
Parking aid switch (integral to the ATCM) |
| 4 |
Rear speakers (part of the audio system) |
| 5 |
Rear active park assist sensors |
| 6 |
Rear parking aid sensors |
| 7 |
PAM |
| 8 |
Front active park assist sensors |
