Parking Brake Actuator Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

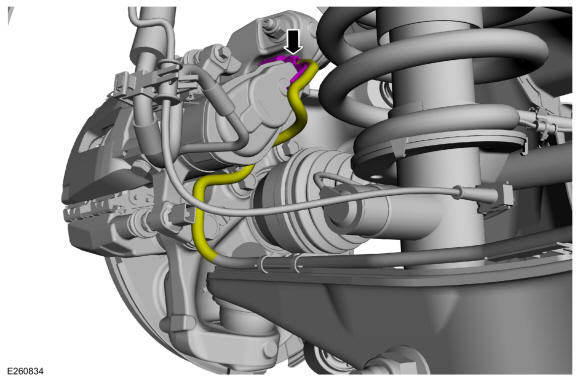

Disconnect the parking brake actuator motor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

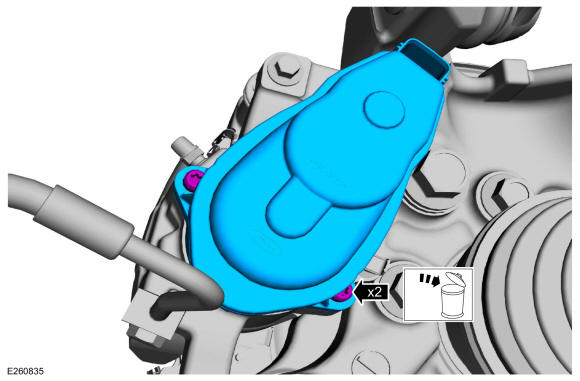

Remove the 2 bolts and the parking brake actuator motor. Discard the bolts.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

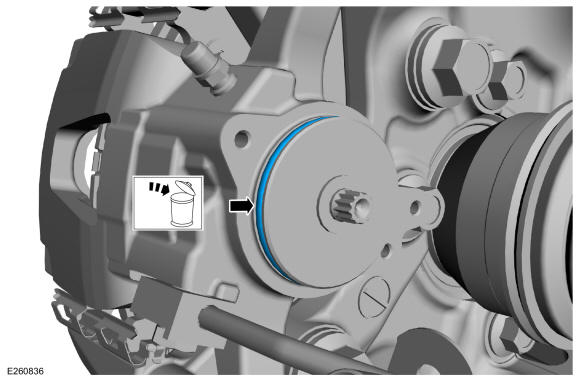

Remove and discard the O-ring.

Courtesy of FORD MOTOR COMPANY
