Rear Halfshaft Seal: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The stub shaft seals must be replaced whenever the halfshafts are removed.
- Remove the rear halfshafts. Refer to: Rear Halfshaft .
-
NOTE: If removing the stub shaft pilot bearing oil seal only, engage the tangs of the Bearing Remover on the stub shaft pilot bearing oil seal only.

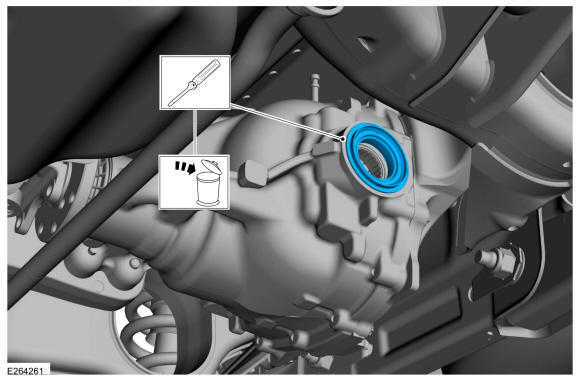

Remove the rear halfshaft seal.
