Rear Subframe: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Partially raise the subframe and position it to the vehicle.

Courtesy of FORD MOTOR COMPANY
Install the rear subframe bolts.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the exhaust hanger isolators.

Courtesy of FORD MOTOR COMPANY
On both sides. Install the bolt and finger tight.

Courtesy of FORD MOTOR COMPANY
If equipped. Install the support brace and finger tight the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Fabricate a spacer.

NOTE: Focus and Focus-ST require different length spacers.
1. Focus.
2. Focus-ST.
Courtesy of FORD MOTOR COMPANY

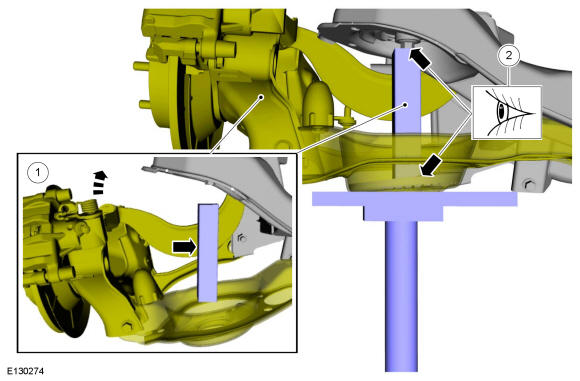

1. Position the jack below the rear transmission assembly and align the rear transmission assembly and rear subframe. Use the General Equipment: Transmission Jack
2. Visual check the proper positioning of support bar between rear subframe and rear transmission assembly.
Courtesy of FORD MOTOR COMPANY
Tighten the bolt.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

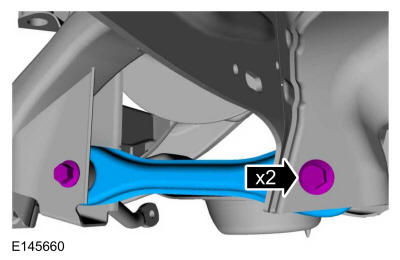

If equipped. Install the support brace and the bolts.
Torque

: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

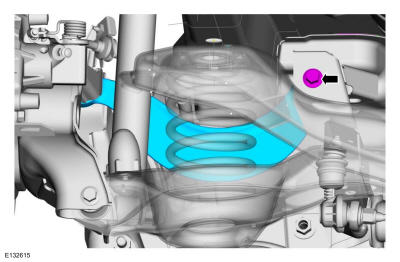

Install the rear stabilizer bar. Refer to: REAR STABILIZER BAR
On both sides. Install the lower arm. Refer to: REAR LOWER ARM
On both sides. Install the springs. Refer to: SPRING
