Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

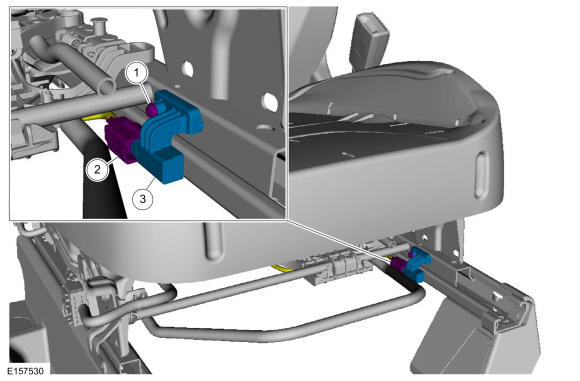

NOTE: RH manual seat shown, other seats similar.
1. Remove the screw.
  Torque

  : 8 lb.in (0.9 Nm)
2. Disconnect the electrical connector.
3. Remove the seat position sensor.

Courtesy of FORD MOTOR COMPANY
