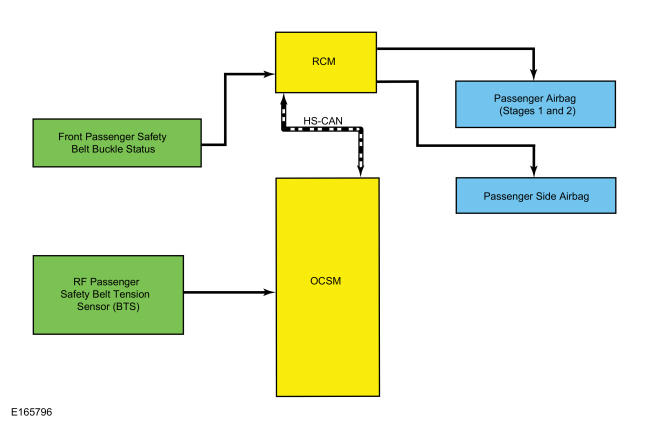

System Diagram - Occupant Classification System (OCS)
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
HS-CAN |
| 2 |
RCM |
| 3 |
OCSM |
| 4 |
Front Passenger Safety Belt Buckle Status |
| 5 |
RF Passenger Safety Belt Tension Sensor (BTS) |
| 6 |
Passenger Airbag (Stages 1 and 2) |
| 7 |
Passenger Side Airbag |
