Seatbelt Shoulder Height Adjuster: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH.

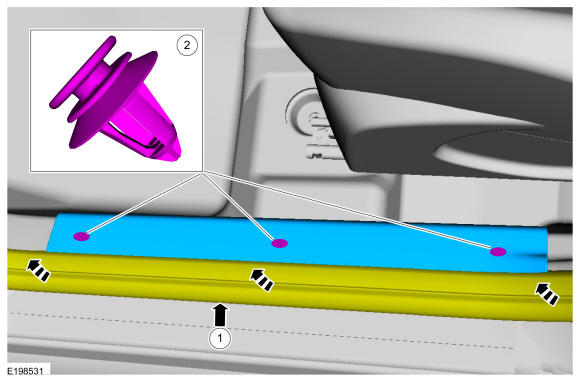

Remove the front scuff plate.
1. Position the weather stripping aside.
2. Release the retainers and remove the scuff plate.
Courtesy of FORD MOTOR COMPANY

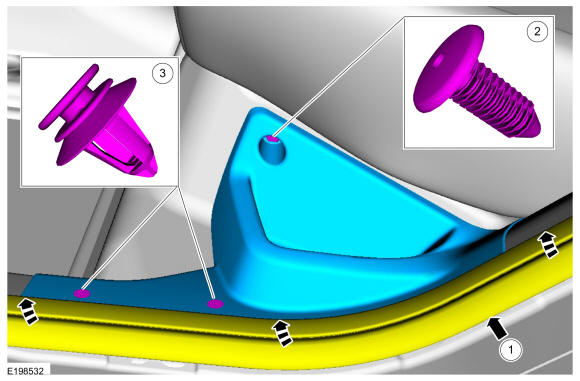

Remove the rear scuff plate.
1. Position the weather stripping aside.
2. Release the retainer.
3. Release the retainers and remove the scuff plate.
Courtesy of FORD MOTOR COMPANY

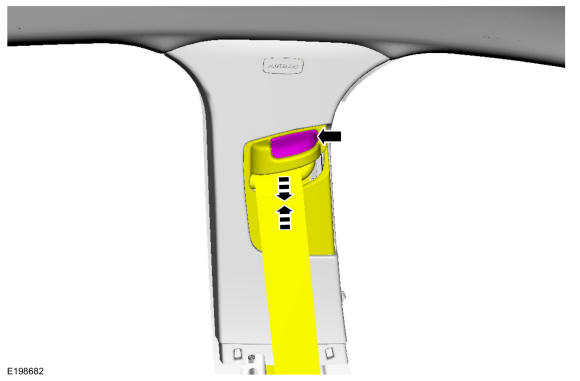

Release the latch and adjust the safety belt shoulder height adjuster to the center position.

Courtesy of FORD MOTOR COMPANY

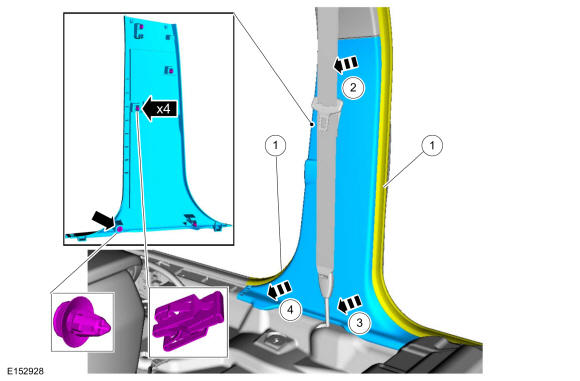

Remove the lower B-pillar trim panel.
1. Position the lower portion of the weather stripping aside.
2. Release the upper retainers.
3. Release the rear lower retainer.
4. Release the front lower retainer.
Courtesy of FORD MOTOR COMPANY

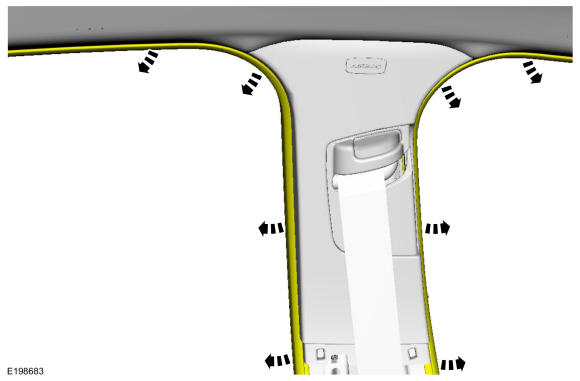

Position the upper portion of the weather stripping aside.

Courtesy of FORD MOTOR COMPANY

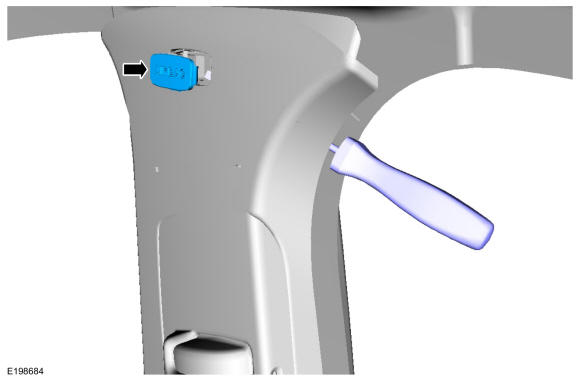

Remove the upper B-pillar trim panel screw cover.

Courtesy of FORD MOTOR COMPANY

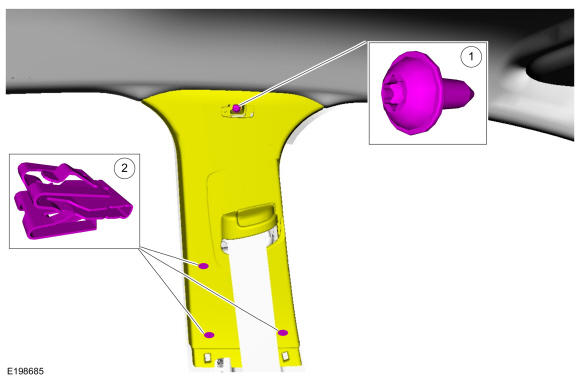

Position the upper B-pillar trim panel aside.
1. Remove the screw.
2. Release the retainers and position the trim panel aside.
Courtesy of FORD MOTOR COMPANY

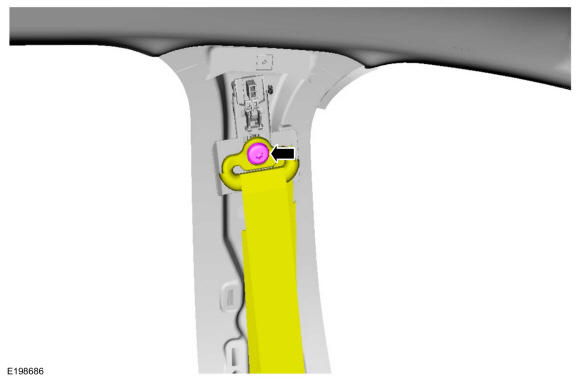

Remove the bolt and position the safety belt aside.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

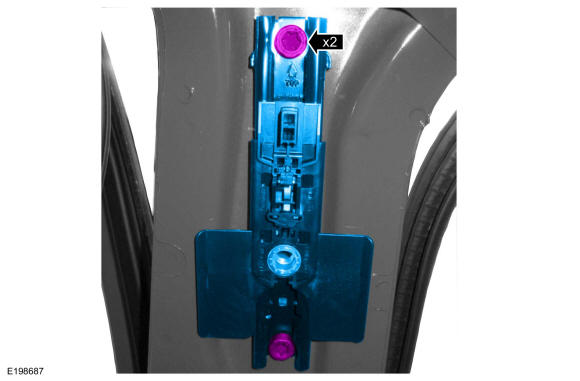

Remove the bolts and the safety belt shoulder height adjuster.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
