Rear Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

4-door vehicles

Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel - 4-Door .
5-door vehicles
Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel - 5-Door .

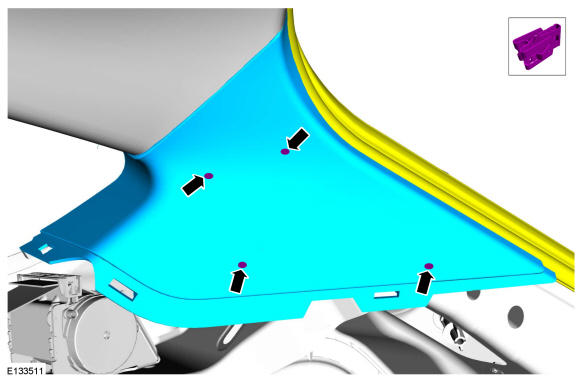

Position aside the liftgate weatherstrip, release the clips and remove the D-pillar trim panel.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Rear seat backrest removed for clarity.

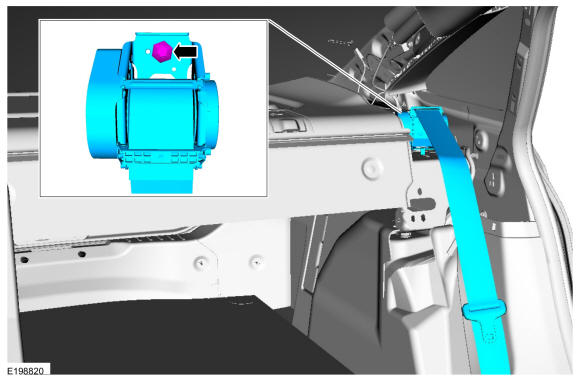

Remove the bolt and the rear seatbelt retractor.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
