Rear Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

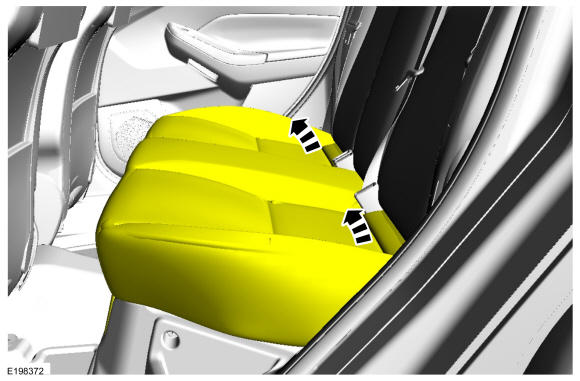

  1. Position the rear seat cushions forward.
    GFD270535Courtesy of FORD MOTOR COMPANY

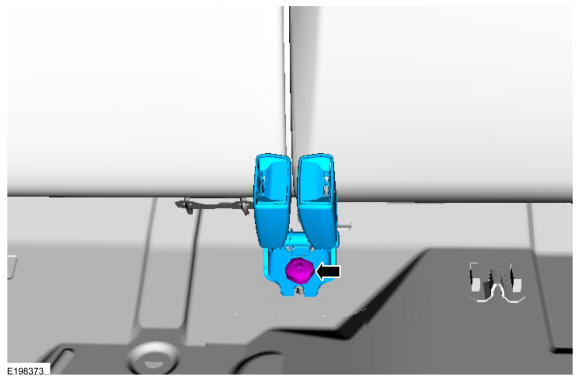

  2. Remove the bolt and the rear safety belt buckle.

    Torque

    : 41 lb.ft (55 Nm)

GFD270536Courtesy of FORD MOTOR COMPANY
