Rear Center Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the LH rear seat backrest. Refer to: Rear Seat Backrest .

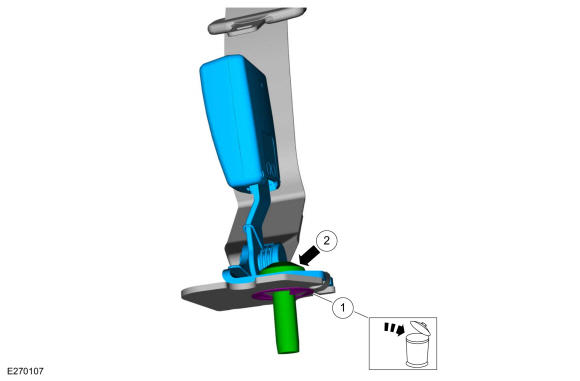

Remove the LH seatbelt buckle.
1. Remove the bolt retainer.
2. Remove the bolt.
Courtesy of FORD MOTOR COMPANY

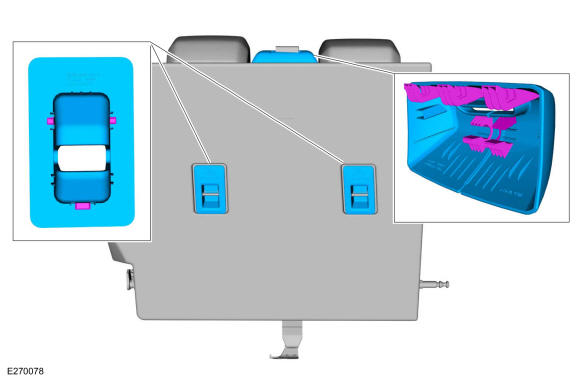

Remove the child safety seat tether anchor bezels and the rear center seatbelt guide bezel.

Courtesy of FORD MOTOR COMPANY

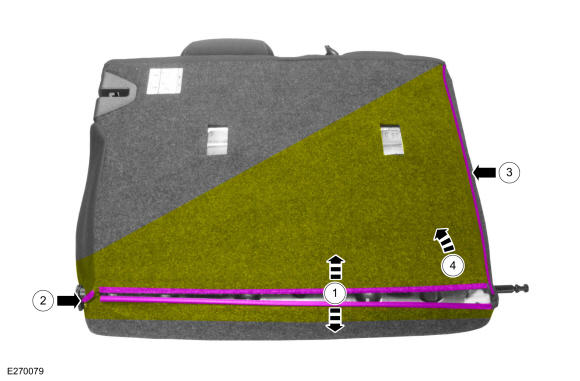

1. Release the J-clip.
2. Release the hook-and-loop retainer.
3. Unzip the backrest cover.
4. Position the backrest cover to access the rear center seatbelt retractor bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: The rear seat backrest cover is shown removed for clarity.

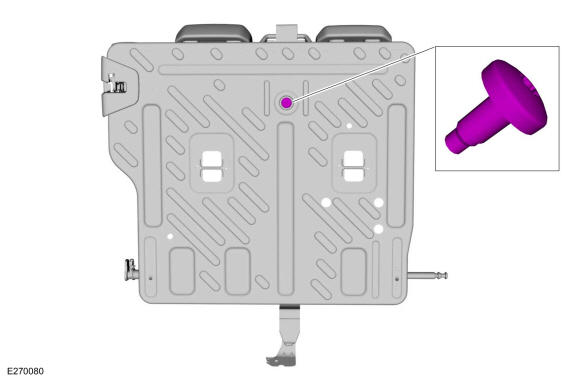

Remove the rear center seatbelt retractor bolt.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

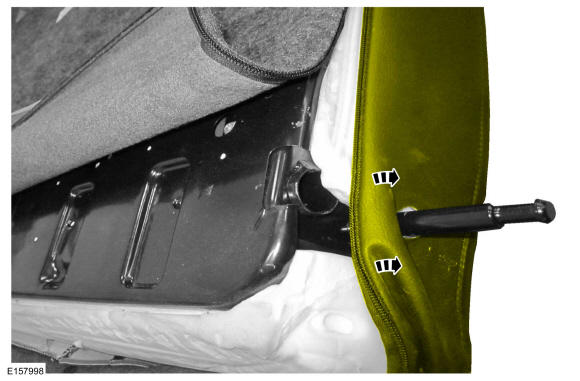

Pull the backrest cover over the rear seat guide pin.

Courtesy of FORD MOTOR COMPANY

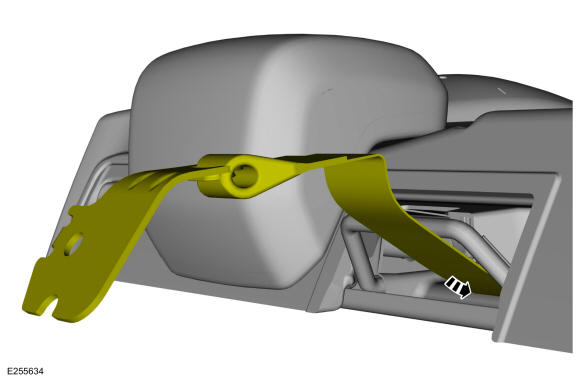

Route the seatbelt through the guide.

Courtesy of FORD MOTOR COMPANY

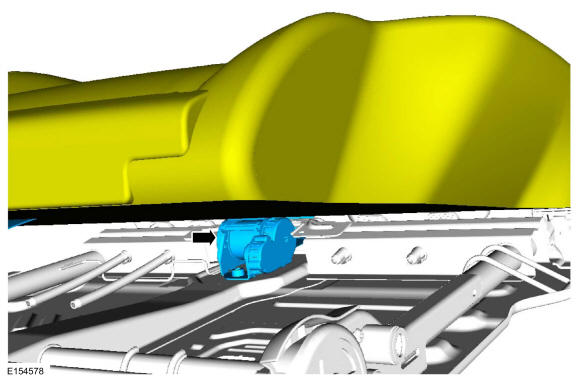

Remove the rear center seatbelt retractor.

Courtesy of FORD MOTOR COMPANY
