Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: RH shown, LH similar.
  1. Remove the RH front seat. Refer to: Front Seat .

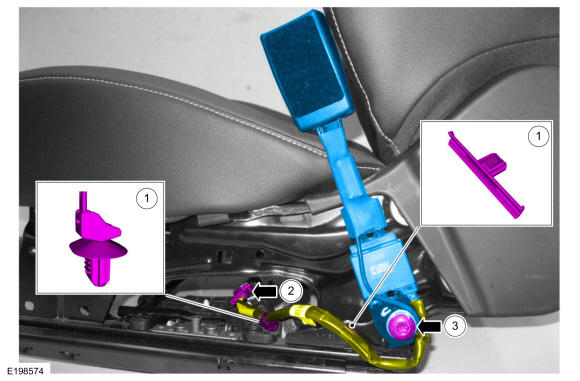

  2. Remove the front safety belt buckle.

    1. Release the wire harness retainers.
    2. Disconnect the electrical connector.
    3. Remove the bolt and the safety belt buckle.

      Torque

      : 35 lb.ft (47 Nm)

GFD270527Courtesy of FORD MOTOR COMPANY
