Seatbelt Twisted at the Seatbelt Guide
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Seatbelt Twisted at the Seatbelt Guide
Adjustment
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- If necessary, remove necessary trim panel(s).
-

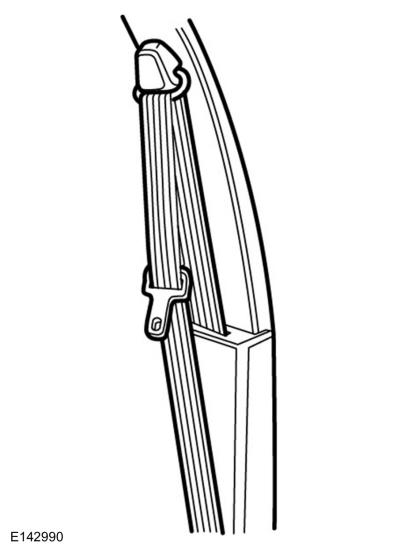

NOTE: Typical D-ring shown, others similar.

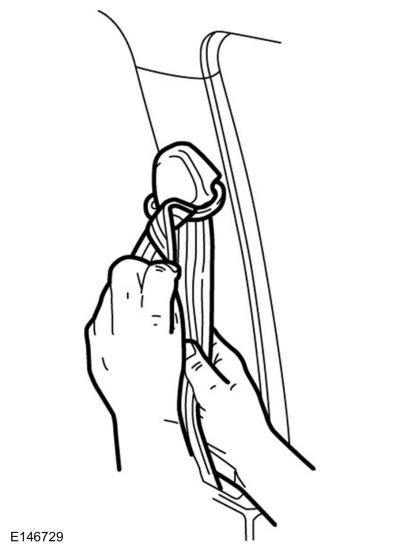

Grasp the safety belt webbing at the D-ring and fold the twisted portion of the safety belt webbing over itself.
- Feed the folded portion of the safety belt webbing through the D-ring to remove the twist from the safety belt webbing.
