Rear Bumper Cover - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear wheel and tire assemblies. Refer to: Wheel and Tire .

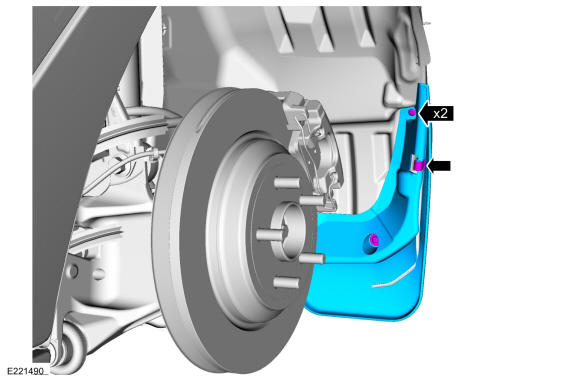

If equipped, on both sides. Remove the screws, release the clip and remove the rear mud flap.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

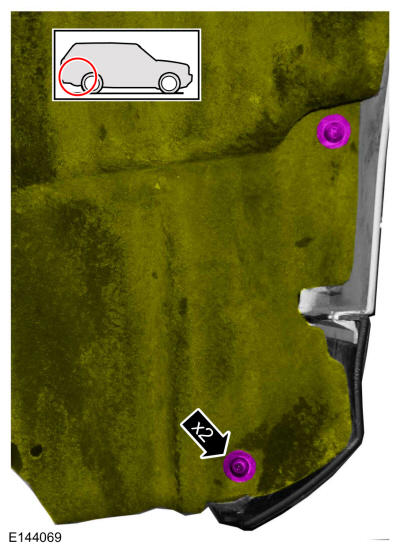

All other vehicles, on both sides. Remove the screws.

Courtesy of FORD MOTOR COMPANY

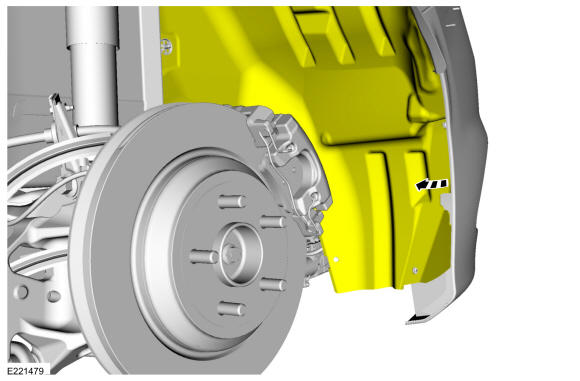

On both sides. Position the rear fender liner aside.

Courtesy of FORD MOTOR COMPANY

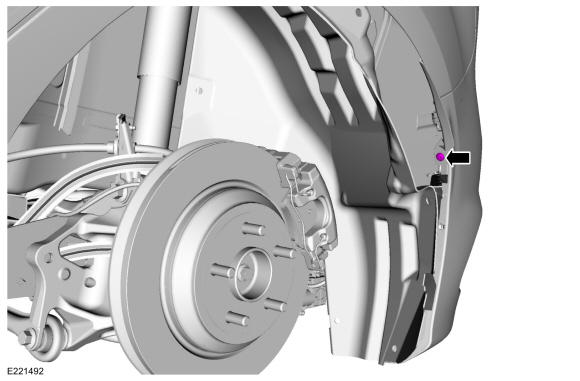

On both sides. Remove the screw.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

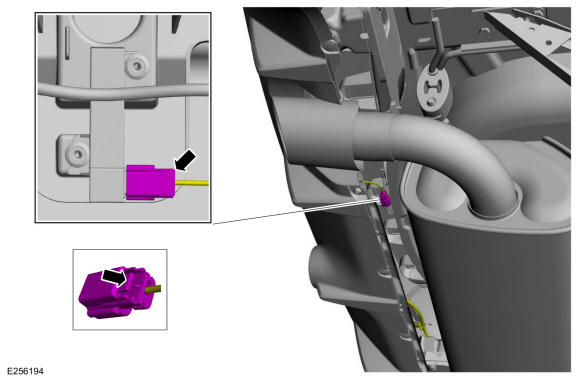

If equipped. Disconnect the Keyless Entry Rear Antenna electrical connector.

Courtesy of FORD MOTOR COMPANY

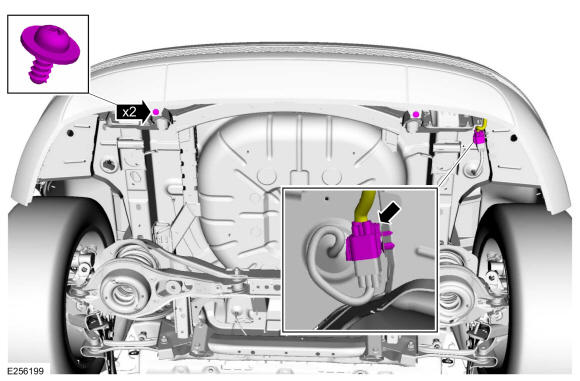

Remove the screws, disconnect the rear bumper cover harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the rear lamp assembly. Refer to: Reversing Lamp - RS .

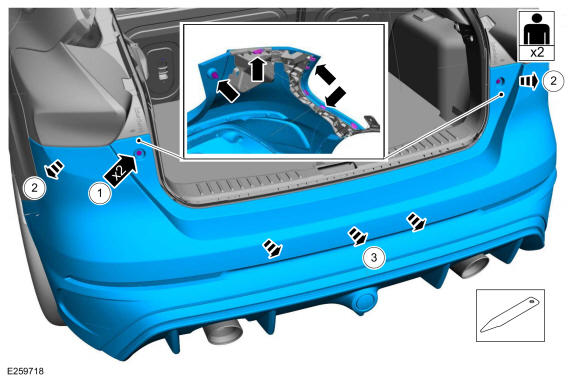

With the help of an assistant. Remove the rear bumper cover.
1. Remove the screws.
  Torque

  : 27 lb.in (3 Nm)
2. Release the sides of the rear bumper cover from the brackets. Use the General Equipment: Interior Trim Remover
3. Release the center of the rear bumper cover from the rear brackets and remove the rear bumper cover.

Courtesy of FORD MOTOR COMPANY
